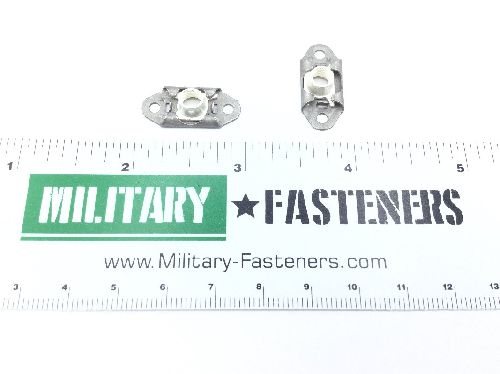

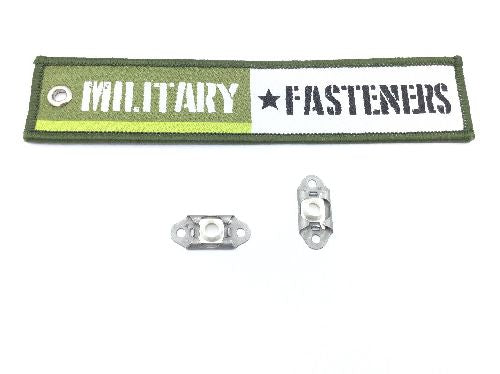

BACN10JR3CF Self-Locking Nutplate

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $2.50

Units per Pack 20

Price per Pack $50.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $50.00

Add item to quote

Material

Iron alloy 660

Surface Treatment

Ams2410 assn standard single treatment response

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Counterbore Diameter: 0.194 inches base
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5525 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.062 inches base
Nut Height: 0.250 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: 0.416 inches
Precious Material: Silver
Precious Material And Location: Silver
Tempurature Rating: 900.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
