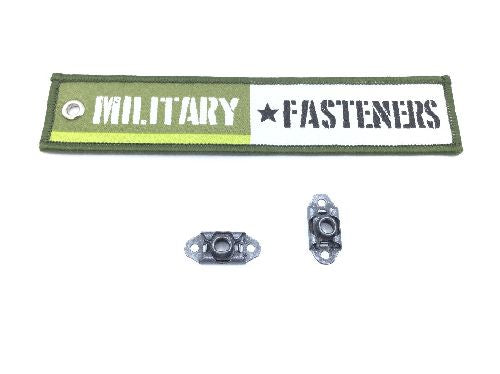

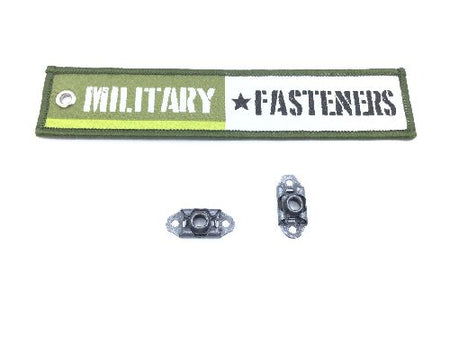

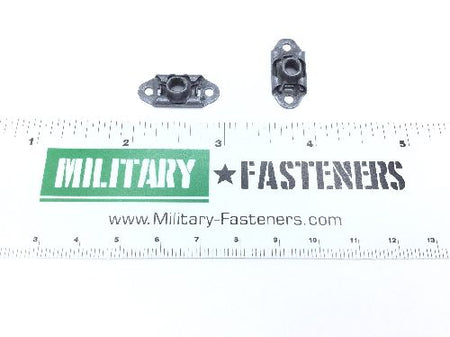

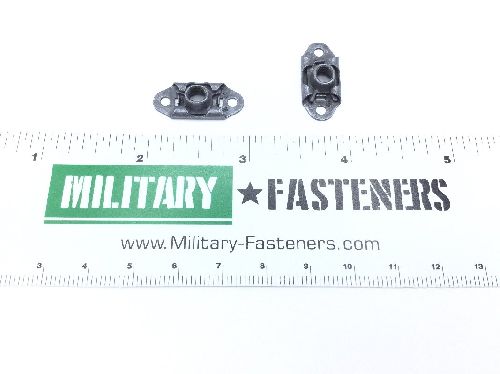

BACN10JR3CFD Self-Locking Nutplate

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.12

Units per Pack 10

Price per Pack $41.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.20

Add item to quote

Material

Iron alloy 660

Surface Treatment

Cl 2 federal specification 3rd treatment response cl 2 federal specification 2nd treatment response or qq-p-416 type 3 cl 2 federal specification 1st treatment response or qq-p-416 type 2 qq-p-416 type 1

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Counterbore Diameter: 0.194 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5525 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.060 inches nut
Nut Height: 0.250 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate (floating)
Plate Thickness: 0.032 inches
Plate Width: 0.416 inches
Specification Data: 81205-bacn10jr manufacturers standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
