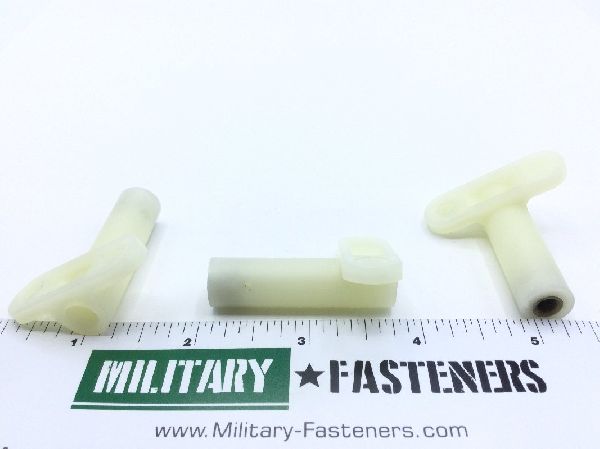

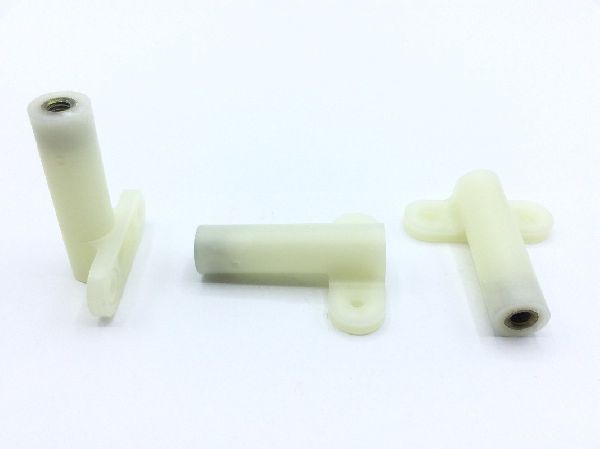

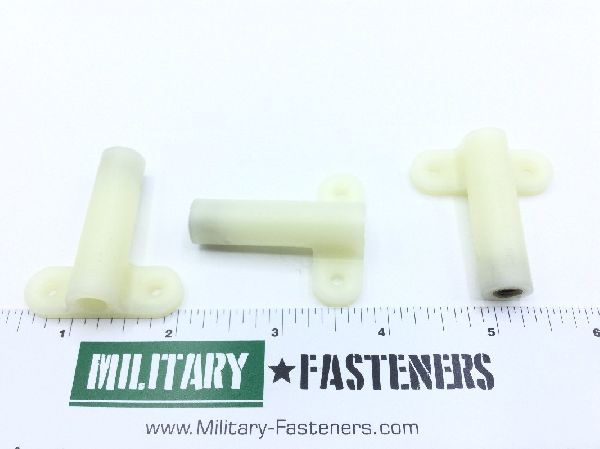

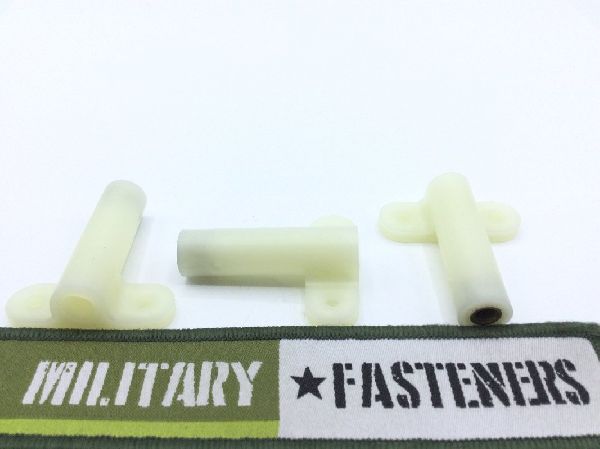

BACN10TS3-12 Self-Locking Nutplate

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic polyamide

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Width: Between 1.000 inches and 1.030 inches
Distance From Base To Center Of Aperture: Between 0.280 inches and 0.340 inches
Distance From Mounting Hole Center To Base: Between 1.390 inches and 1.510 inches
Locking Feature: Prevailing torque with metallic insert
Material Specification: Class 2 federal standard single material response ty1 class 1 federal standard single material response or l-p-395 ty1 l-p-395
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.133 inches and 0.143 inches
Nut Height: Between 1.570 inches and 1.670 inches
Nut Length: Between 1.610 inches and 1.790 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.110 inches and 0.150 inches
Plate Width: Between 1.440 inches and 1.590 inches
Special Features: 0.070 in. max inspection hole through nut 0.063 in. min
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
