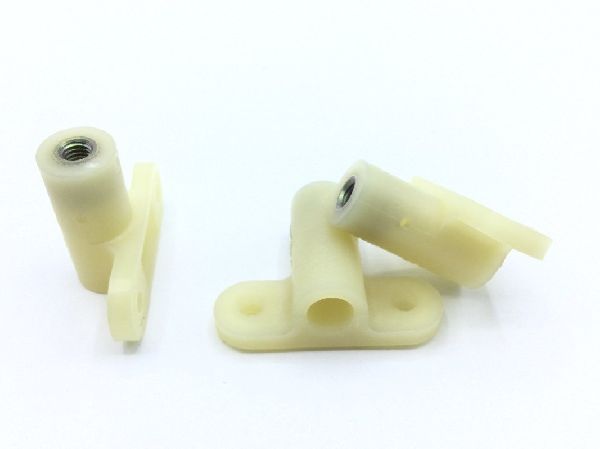

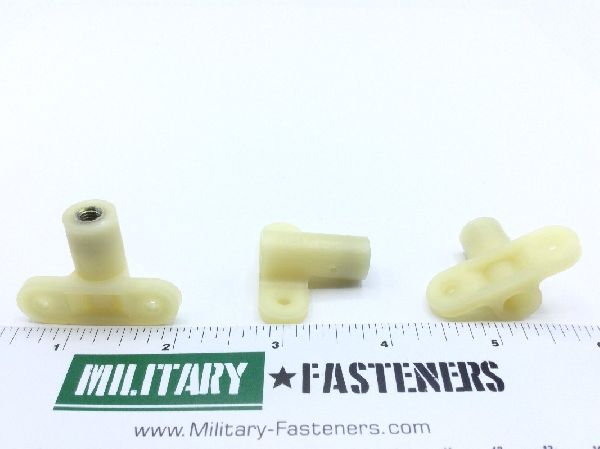

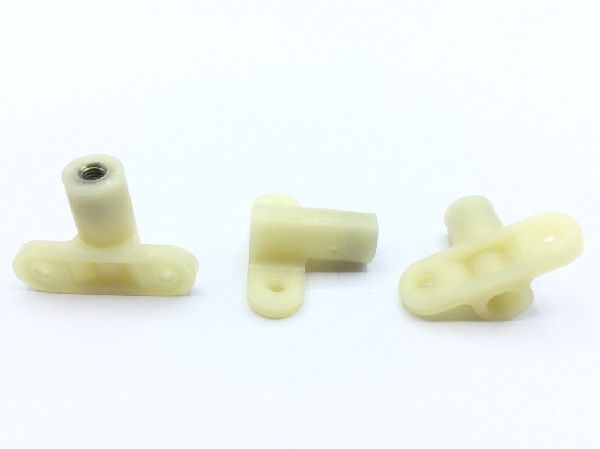

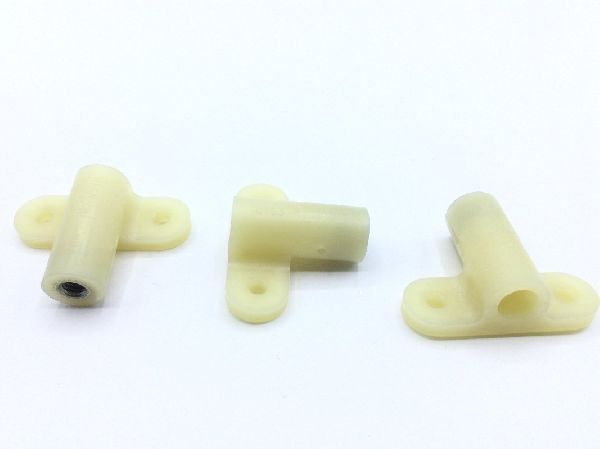

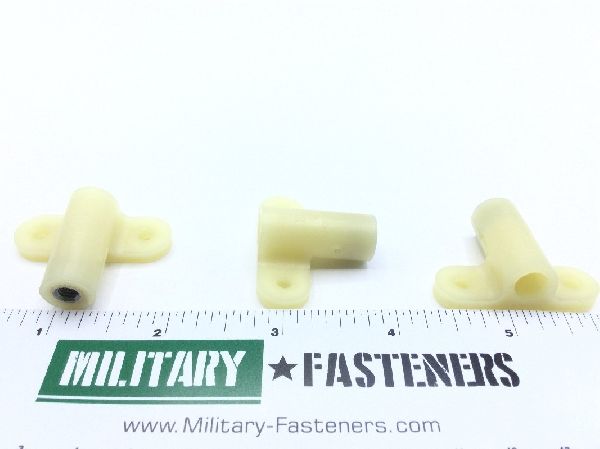

BACN10TS3-6 Self-Locking Nutplate

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $5.89

Units per Pack 10

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Material

Plastic polyamide

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Width: Between 1.000 inches and 1.030 inches
Distance From Base To Center Of Aperture: Between 0.280 inches and 0.340 inches
Distance From Mounting Hole Center To Base: Between 0.790 inches and 0.910 inches
Locking Feature: Prevailing torque with metallic insert
Material Specification: Class 2 federal specification single material response ty1 class 1 federal specification single material response or l-p-395 ty1 l-p-395
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.133 inches and 0.143 inches
Nut Height: Between 0.970 inches and 1.070 inches
Nut Length: Between 1.010 inches and 1.190 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.110 inches and 0.150 inches
Plate Width: Between 1.440 inches and 1.590 inches
Special Features: 0.070 in. max inspection hole through nut 0.063 in. min
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
