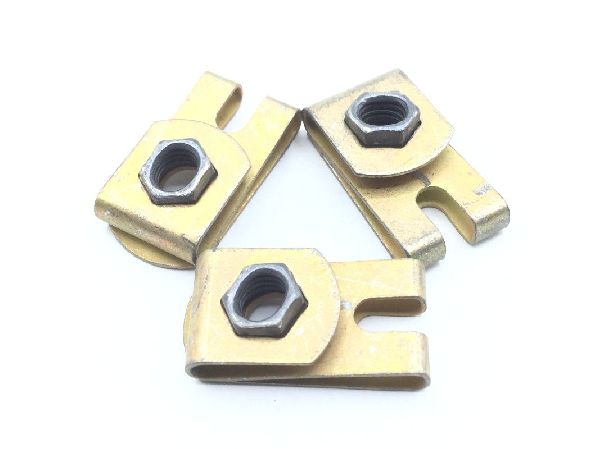

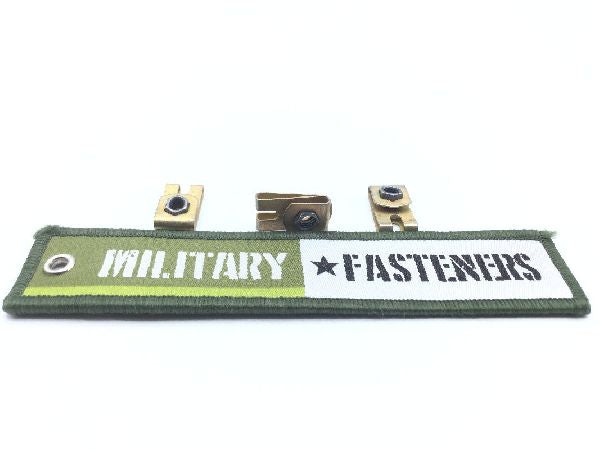

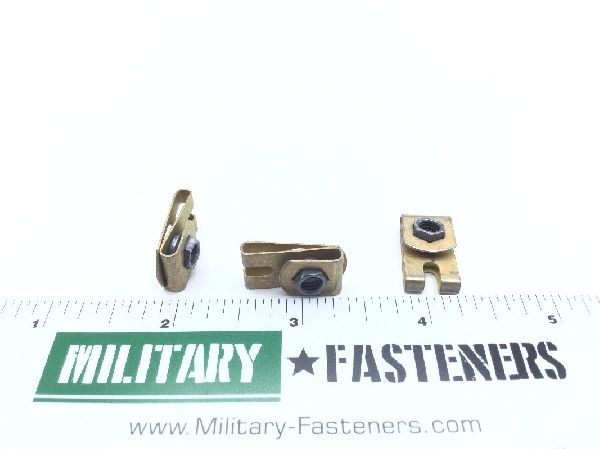

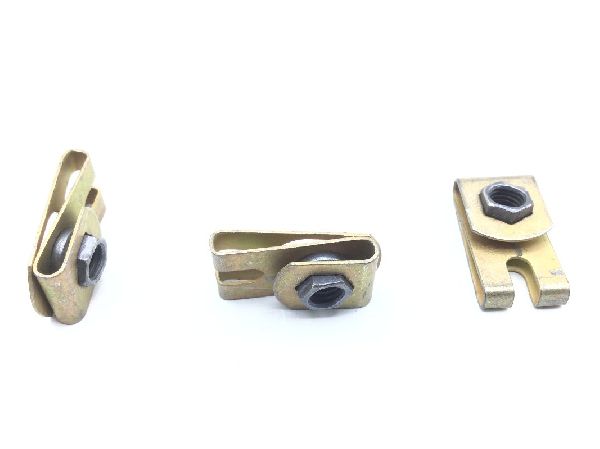

BACN10YD1 Clip-On Nut

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.81

Units per Pack 10

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Material

Steel

Surface Treatment

Cl1 federal specification single treatment response clip ty2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Distance From Base To Center Of Aperture: Between 0.500 inches and 0.530 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 46.0 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Nut Style: Floating
Overall Width: Between 0.427 inches and 0.447 inches
Panel Thickness: 0.095 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
