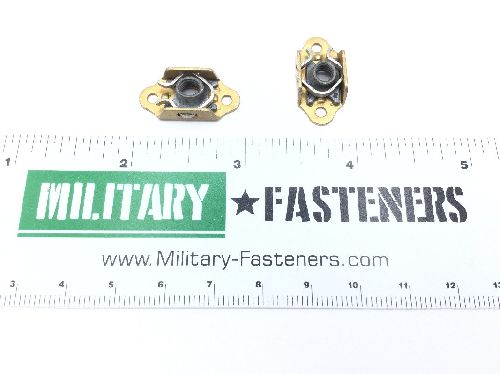

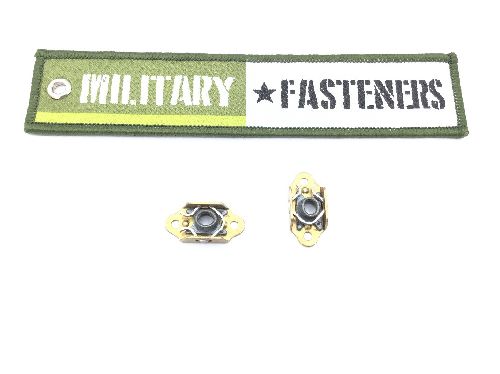

BACN11G3A1CD Self-Locking Nutplate

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.46

Units per Pack 10

Price per Pack $44.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $44.60

Add item to quote

Material

Iron alloy 660 shell

Surface Treatment

Class 2 federal specification single treatment response shell type ii qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Material Specification: Ams 5525 assn standard single material response nut or ams 5731 assn standard single material response nut or ams 5737 assn standard single material response nut
Nut Height: 0.250 inches
Nut Length: 0.948 inches
Nut Quantity: 1
Plate Thickness: 0.032 inches
Plate Width: 0.445 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
