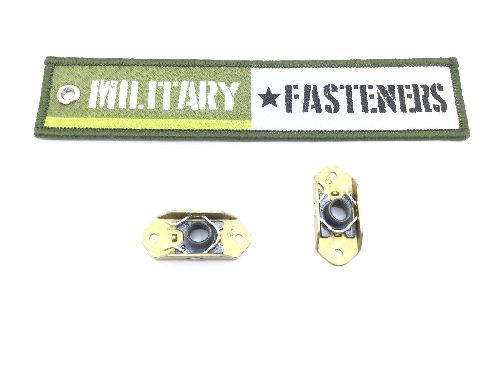

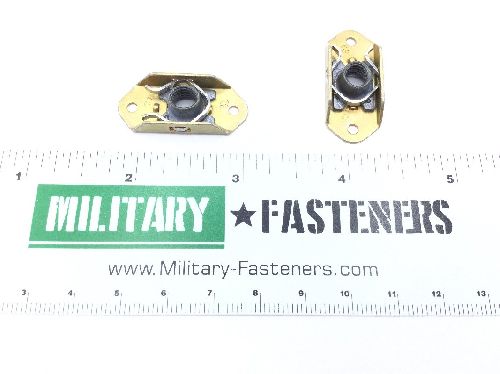

BACN11G4A1CD Self-Locking Nutplate

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660 nut

Surface Treatment

cl 2 national specification single treatment response nut qq-a-416< ty ii

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.25 inches

Center To Center Distance Between Mounting Holes Along Length: 1 inches
Counterbore Diameter: 0.254 inches nut
Distance From Mounting Hole Center To Base: 0.125 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Free-running all metal design
Material Specification: Ams 5525 national specification single material response base
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.07 inches nut
Nut Height: 0.295 inches
Nut Length: 1.292 inches
Nut Style: Plate (floating)
Plate Thickness: 0.032 inches
Plate Width: 0.584 inches
Removable Nut Manufacturer Code: 81205
Removable Nut Manufacturer Part Number: Bacn11f
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
