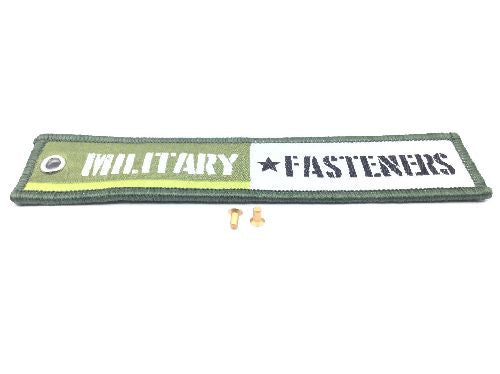

BACR15BA3AD3C Solid Rivet

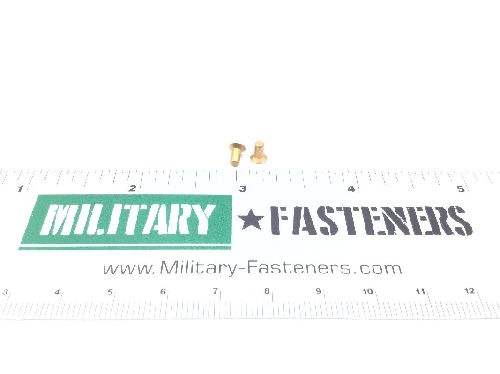

BACR15BA3AD3C Solid Rivet (2)

BACR15BA3AD3C Solid Rivet (3)

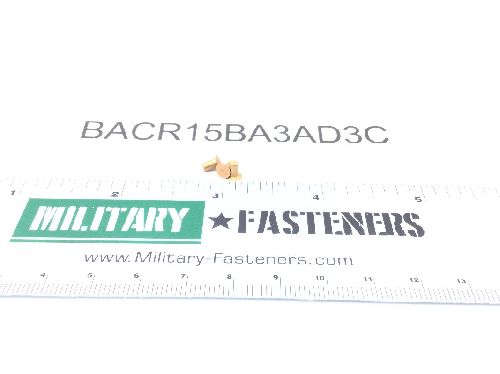

BACR15BA3AD3C Solid Rivet (4)

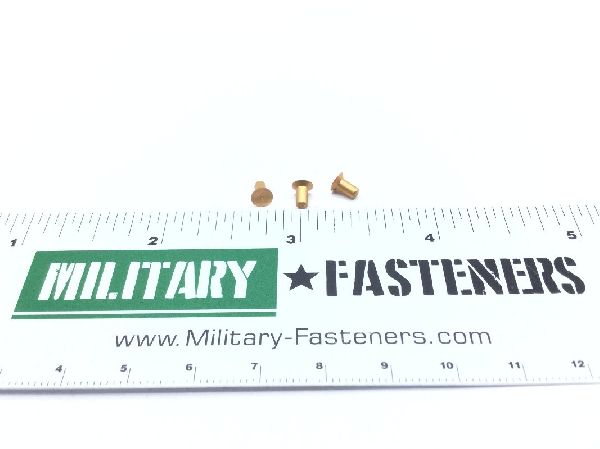

BACR15BA3AD3C Solid Rivet (5)

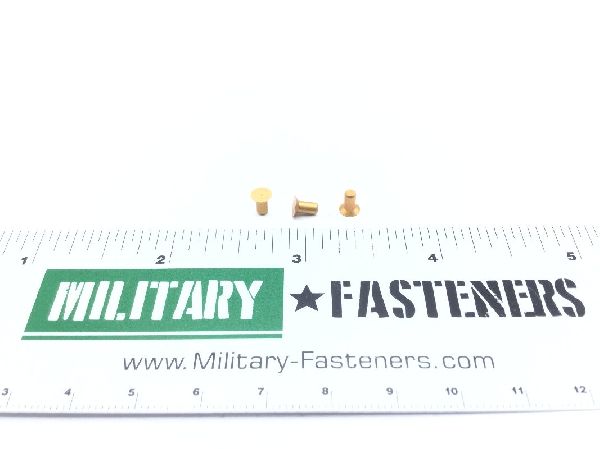

BACR15BA3AD3C Solid Rivet (6)

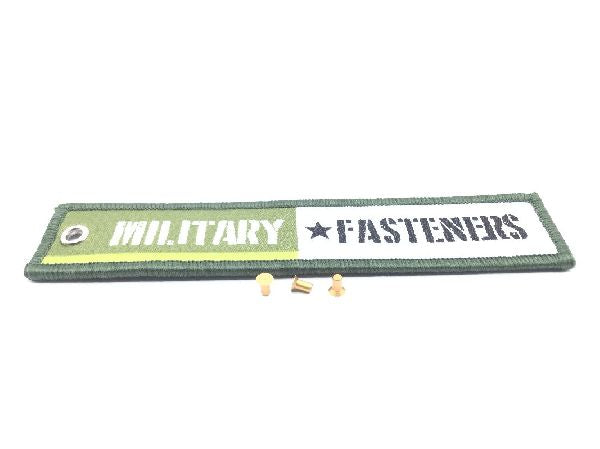

BACR15BA3AD3C Solid Rivet (7)

BACR15BA3AD3C Solid Rivet (8)

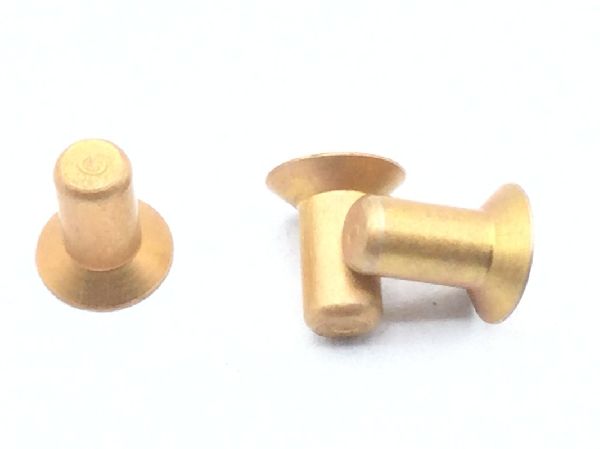

BACR15BA3AD3C Solid Rivet (9)

BACR15BA3AD3C Solid Rivet (10)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

BACR15BA3AD3C Solid Rivet

Product Series: BAC
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $0.25

Units per Pack 100

Price per Pack $25.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $25.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 type 2 military specification single treatment response

Countersink Angle: Between 99.0 degrees and 101.0 degrees
End Application: C-135ccab
Fastener Length: Between 0.178 inches and 0.198 inches
Head Major Diameter: 0.184 inches
Heat Treatment: T-4 solution heat treated
Identification Code Color: Natural
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.0938 inches and 0.0963 inches
Shank Style: Straight with radius chamfered tip
Shear Strength: 26000 single pounds per square inch
