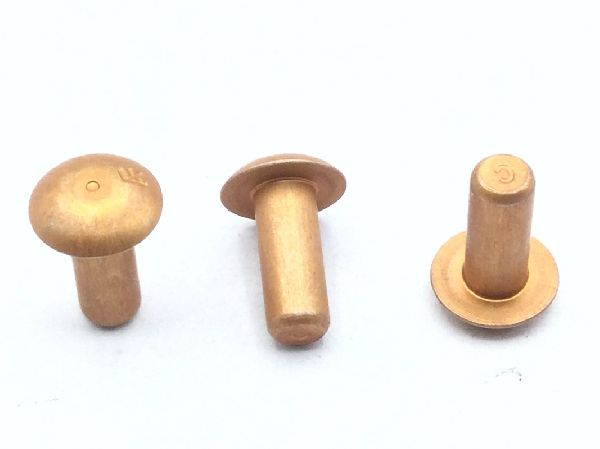

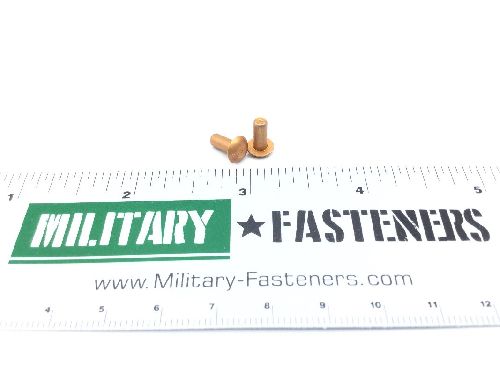

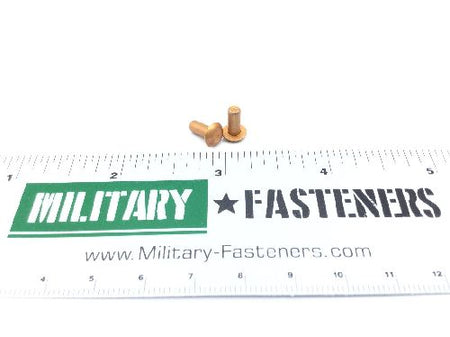

BACR15BB4AD5C Solid Rivet

BACR15BB4AD5C Solid Rivet (2)

BACR15BB4AD5C Solid Rivet (3)

BACR15BB4AD5C Solid Rivet (4)

BACR15BB4AD5C Solid Rivet (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

BACR15BB4AD5C Solid Rivet

Product Series: BAC
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Small pan

Material

Aluminum alloy

End Application: C-135 ccab
Fastener Length: Between 0.302 inches and 0.322 inches
Head Height: Between 0.054 inches and 0.064 inches
Head Major Diameter: Between 0.252 inches and 0.262 inches
Part Name Assigned By Controlling Agency: Close tolerance shank universal head rivet
Shank Diameter: Between 0.125 inches and 0.1275 inches
Shank Style: Straight with radius chamfered tip
