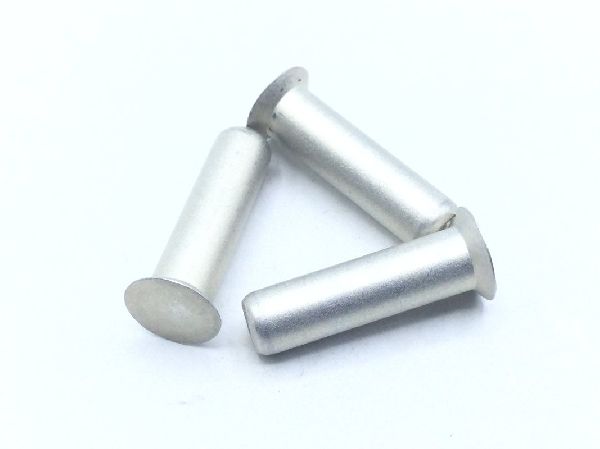

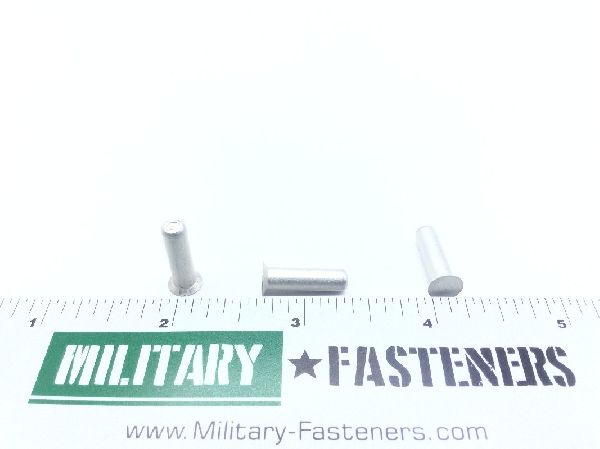

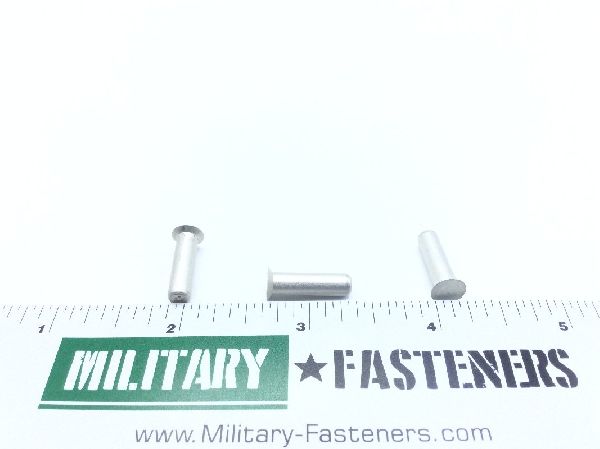

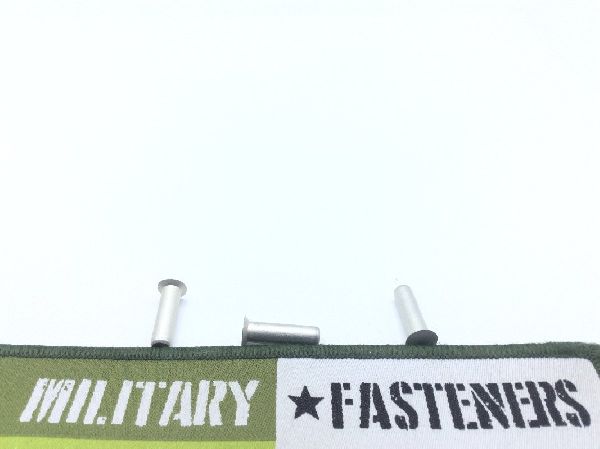

BACR15CE6D11 Solid Rivet

Product Series: BAC
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2017

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Countersink Height: 0.046 inches
Fastener Length: Between 0.6775 inches and 0.6975 inches
Head Height: Between 0.003 inches and 0.006 inches
Head Major Diameter: Between 0.2966 inches and 0.3016 inches
Head Minor Diameter: Between 0.198 inches and 0.208 inches
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.186 inches and 0.189 inches
Shank Style: Straight
Shear Strength: 33000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
