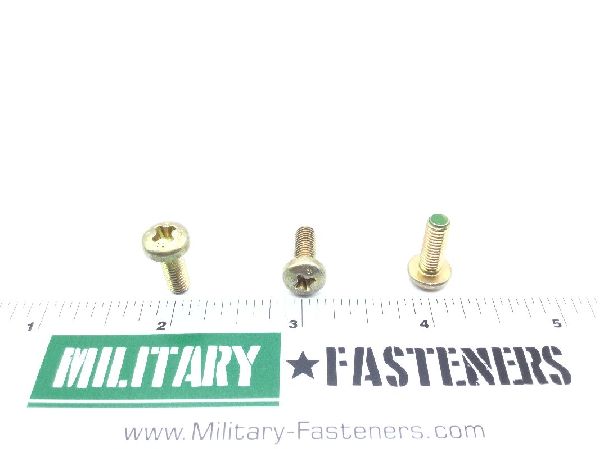

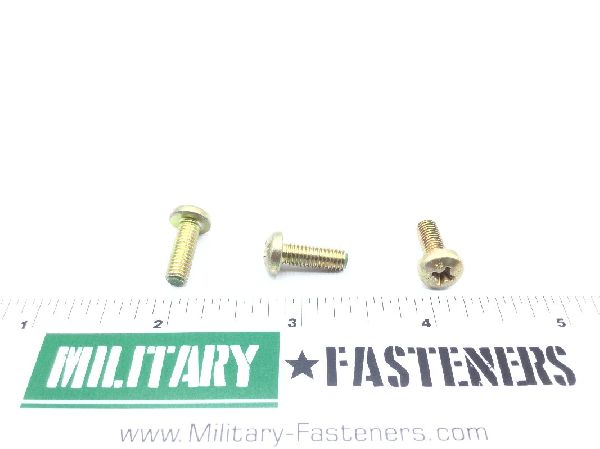

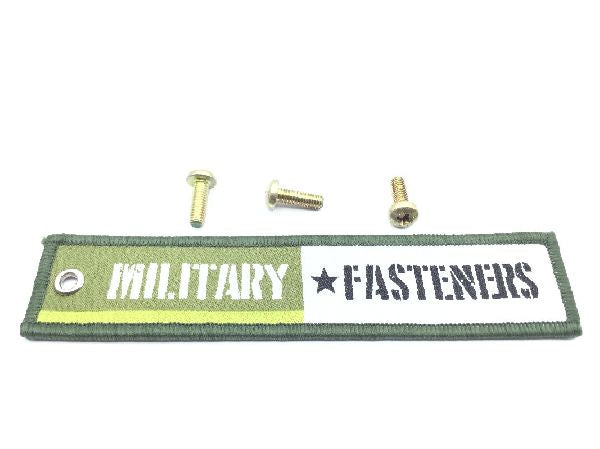

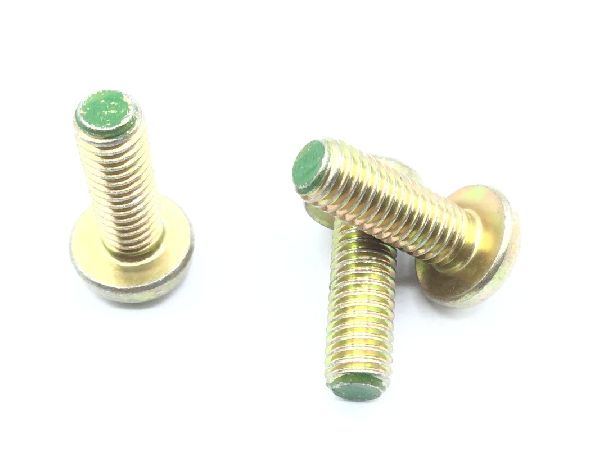

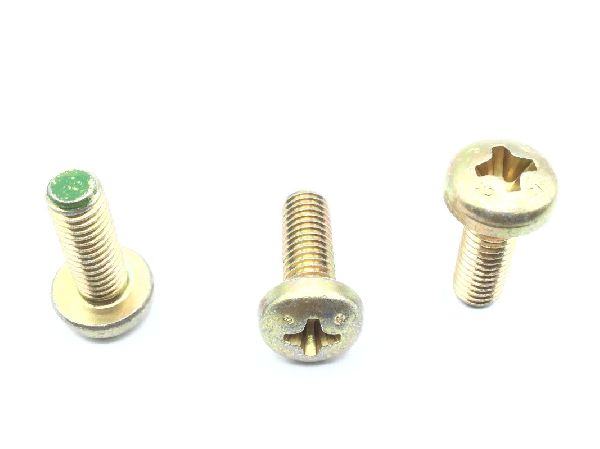

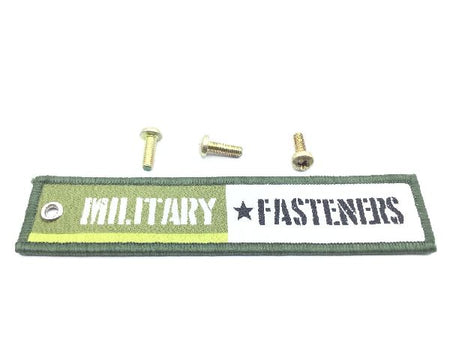

BACS12CK3-9 Machine Screw

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $8.24

Units per Pack 10

Price per Pack $82.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $82.40

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.530 inches and 0.560 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Screw Material: Iron alloy 660
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification single treatment response type 2 qq-p-416
Specification Data: 81205-bacs12ck professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.468 inches and 0.560 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
