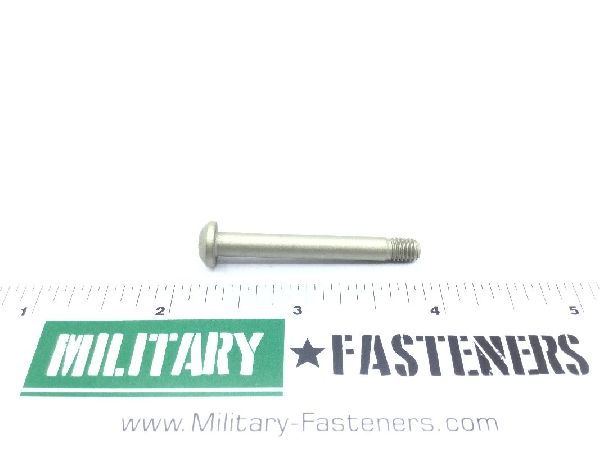

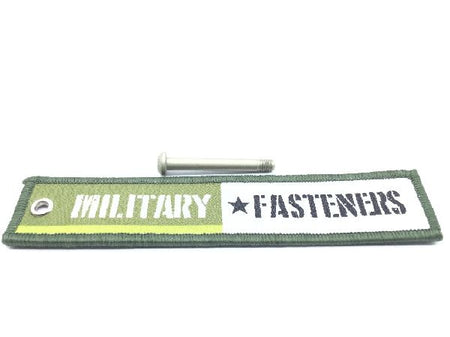

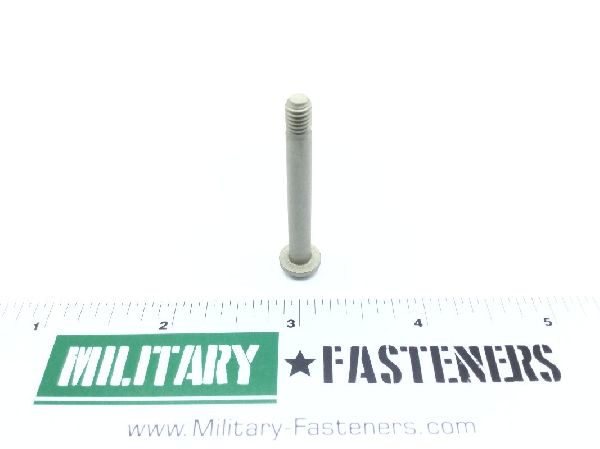

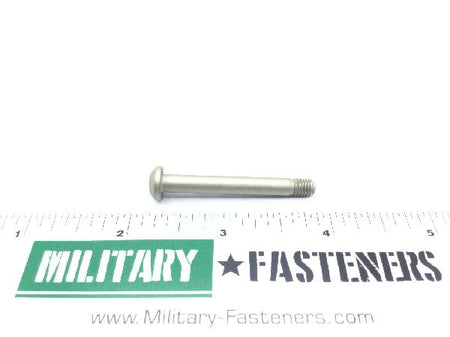

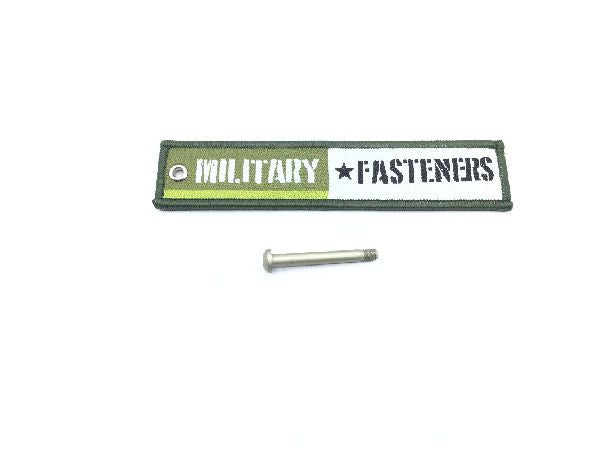

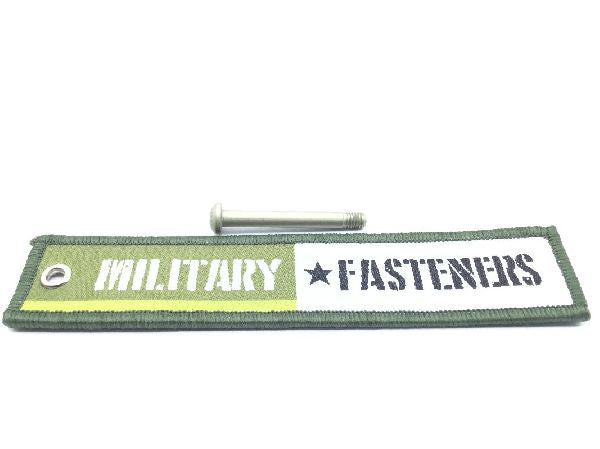

BACS12HW3T21 Machine Screw

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $96.95

Units per Pack 1

Price per Pack $96.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $96.95

Add item to quote

Head Style

Flat chamfer

Material

Titanium alloy uns r56400

Thread Class

End Application: Cv-22
Fastener Length: Between 1.573 inches and 1.603 inches
Grip Diameter: Between 0.188 inches and 0.189 inches
Grip Length: Between 1.302 inches and 1.322 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Torx
Part Name Assigned By Controlling Agency: Close tolerance pan head screw
Special Features: Lubricated with cetyl alcohol
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.357 inches and 0.373 inches
