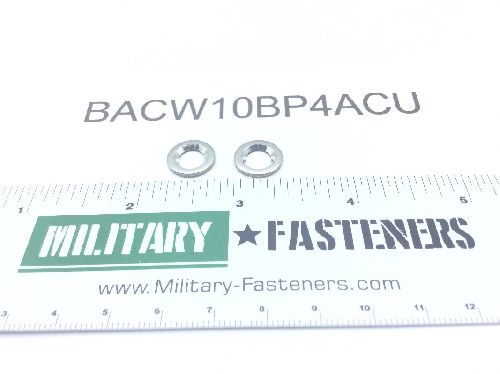

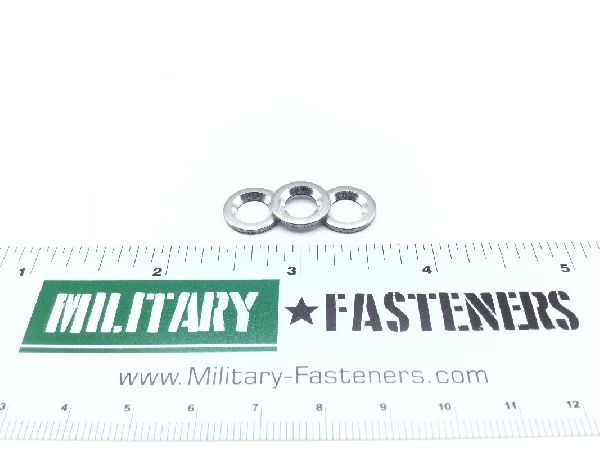

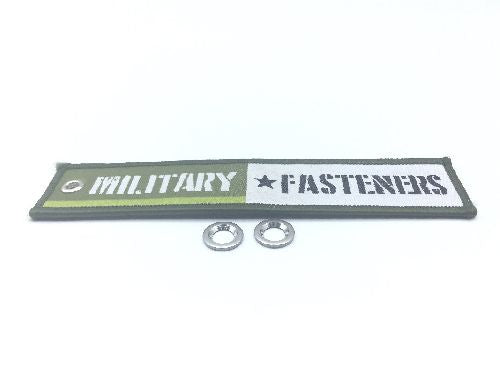

BACW10BP4ACU Recessed Washer

BACW10BP4ACU Recessed Washer (2)

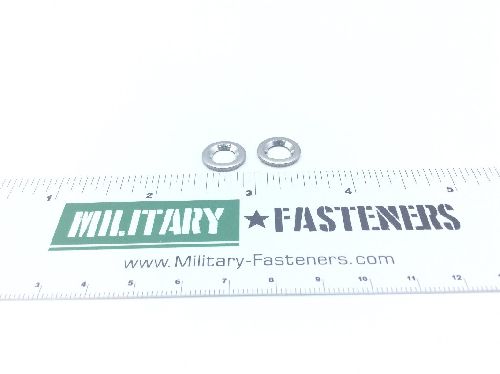

BACW10BP4ACU Recessed Washer (3)

BACW10BP4ACU Recessed Washer (4)

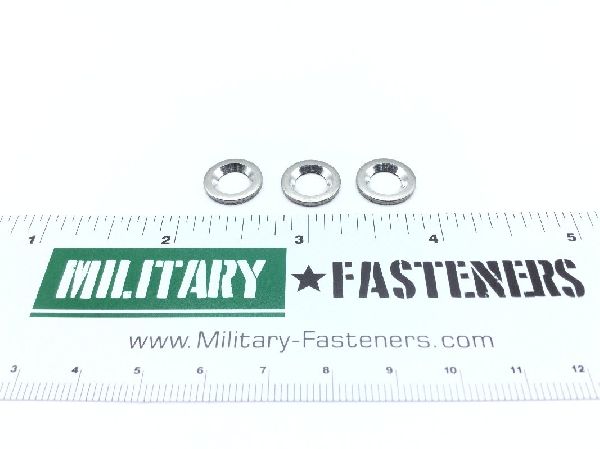

BACW10BP4ACU Recessed Washer (5)

BACW10BP4ACU Recessed Washer (6)

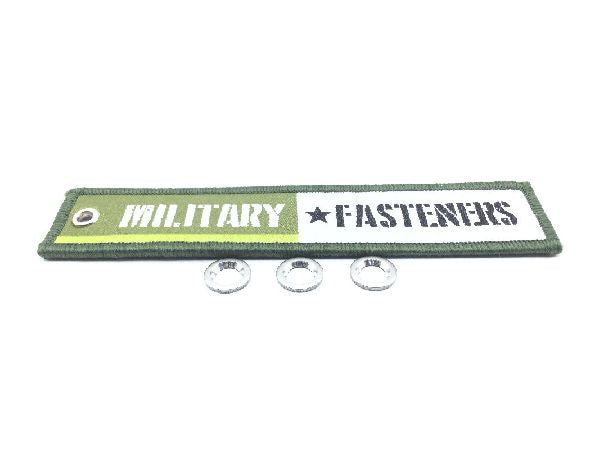

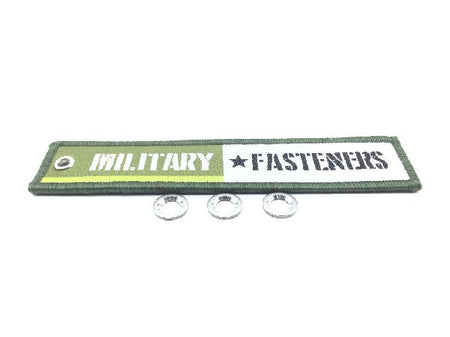

BACW10BP4ACU Recessed Washer (7)

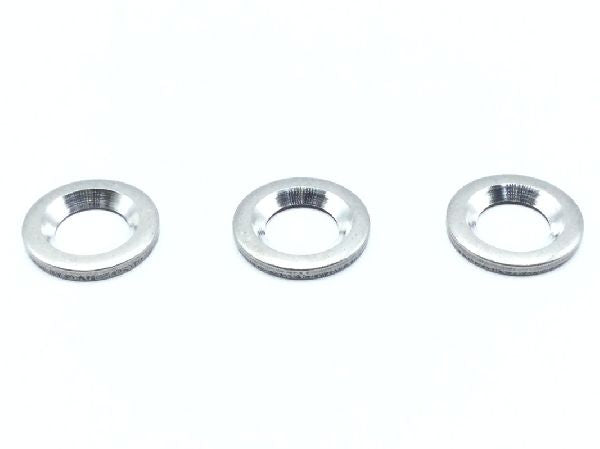

BACW10BP4ACU Recessed Washer (8)

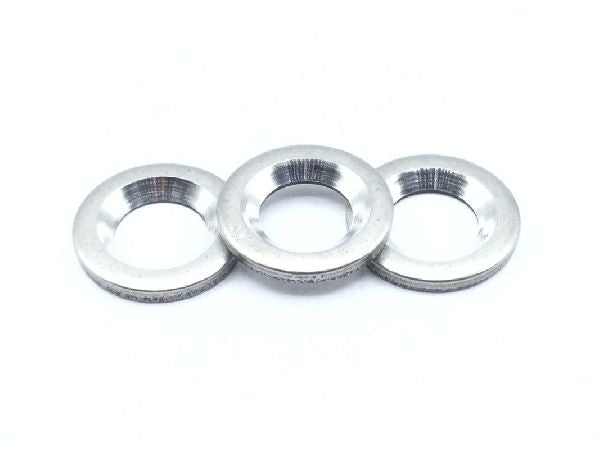

BACW10BP4ACU Recessed Washer (9)

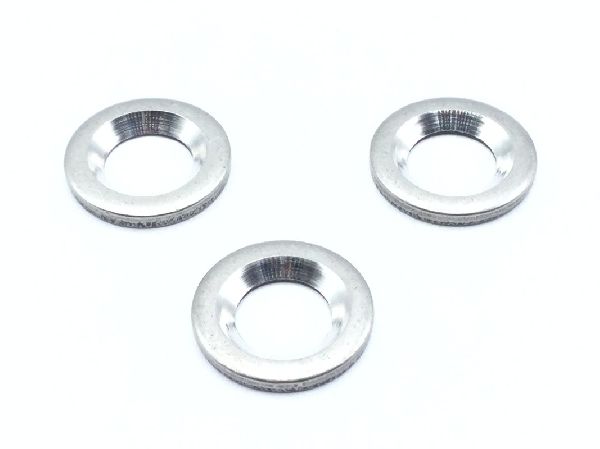

BACW10BP4ACU Recessed Washer (10)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

BACW10BP4ACU Recessed Washer

Product Series: BAC
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Material

Steel comp 301

Surface Treatment

Qq-p-35 federal specification single treatment response

Material Specification: Ams 5518 assn standard single material response
Material Thickness: Between 0.057 inches and 0.069 inches
Min. Tensile Strength (psi): 140000 pounds per square inch
Outside Diameter: Between 0.475 inches and 0.495 inches
Recess Angle: Between 90 degrees and 100 degrees
Recess Diameter: Between 0.332 inches and 0.352 inches
Specification Data: 81205-bacw10bp manufacturers standard
Style Designator: Recessed
Hole Diameter: Between 0.25 inches and 0.261 inches
