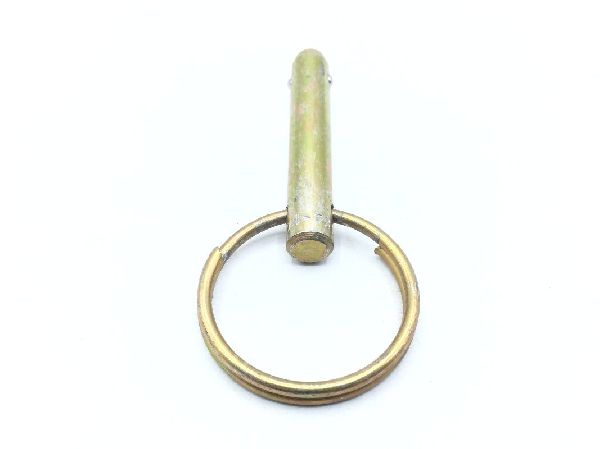

BLNS4-10 Quick Release Pin

BLNS4-10 Quick Release Pin (2)

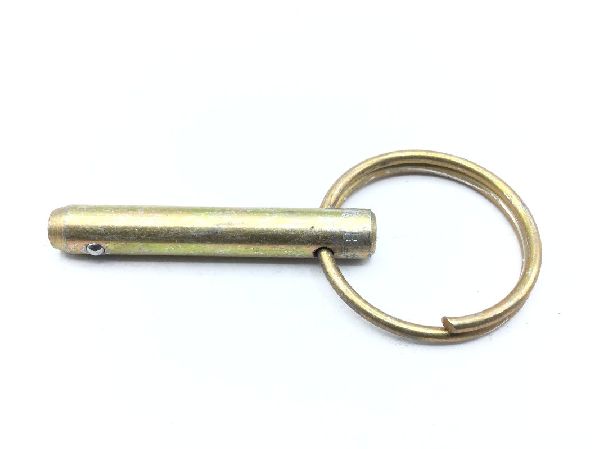

BLNS4-10 Quick Release Pin (3)

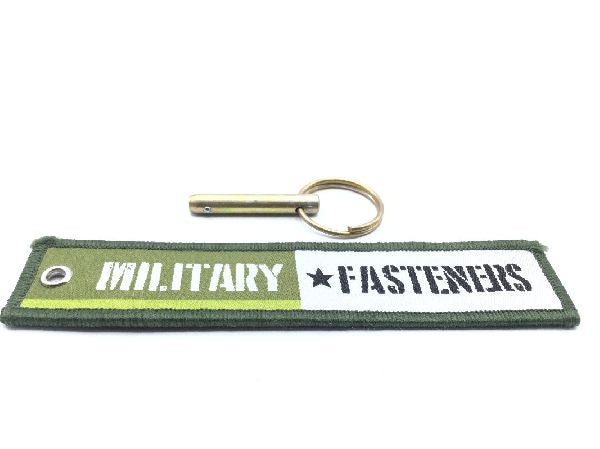

BLNS4-10 Quick Release Pin (4)

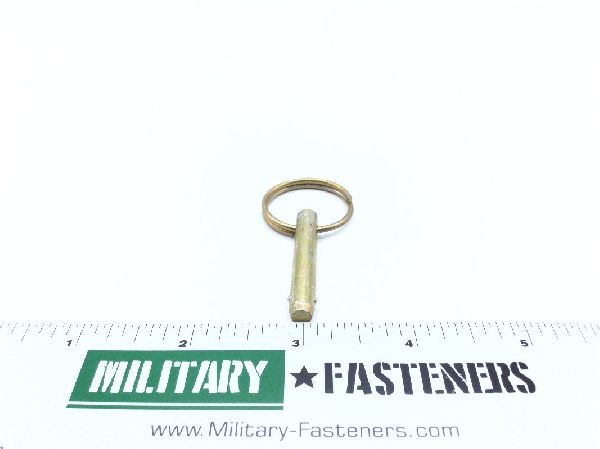

BLNS4-10 Quick Release Pin (5)

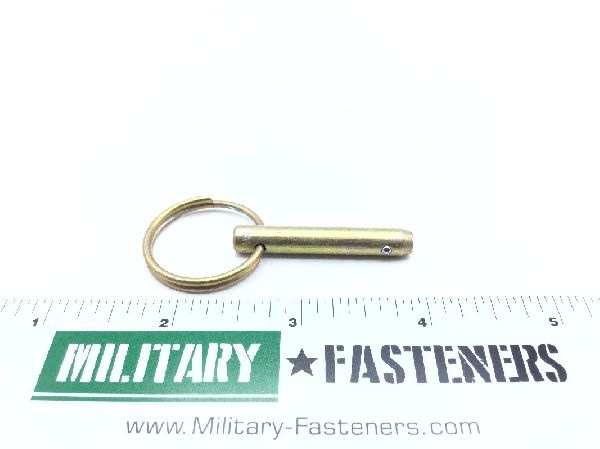

BLNS4-10 Quick Release Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

BLNS4-10 Quick Release Pin

NSN: 5315-00-422-1716
ECCN: EAR99
Schedule: 7318.24.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 4130 shank

Surface Treatment

Class 3 federal specification single treatment response spring type 2 class 3 or qq-p-416 type 1 qq-p-416

Actuation Type: Pull and push
Detent Quantity: 2
Detent To Tapered End Distance: 0.344 inches
Grip Length: Between 1.000 inches and 1.020 inches
Material Specification: Sae 4130 military specification single material response shank mil-s-6758
Ring Handle Diameter: 1.187 inches
Shank Diameter: Between 0.245 inches and 0.248 inches
Shear Strength: 8500 double pounds per square inch
Style Designator: Ring handle
