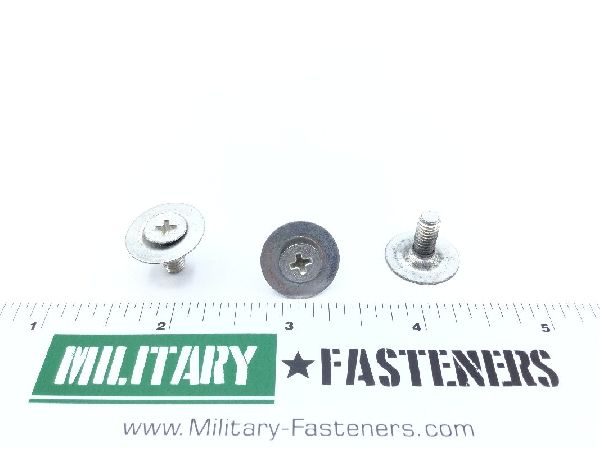

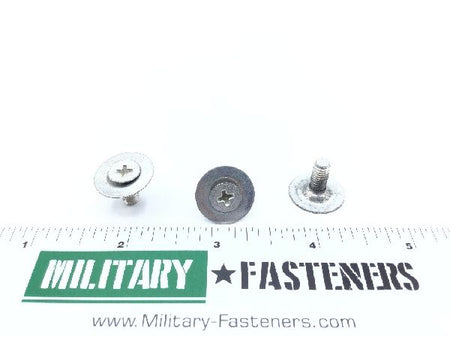

CA3105-1032-8 Assembled Washer Screw (2)

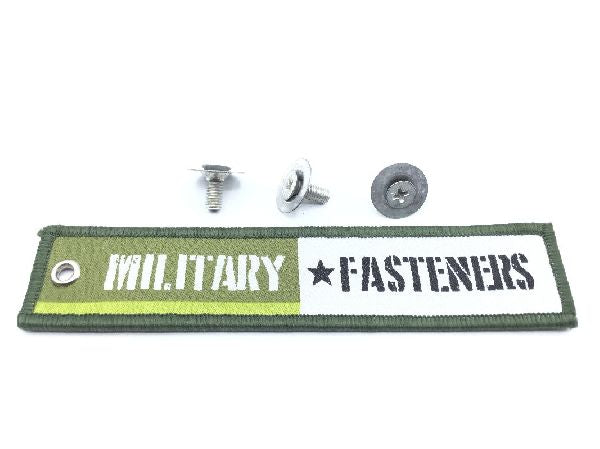

CA3105-1032-8 Assembled Washer Screw (3)

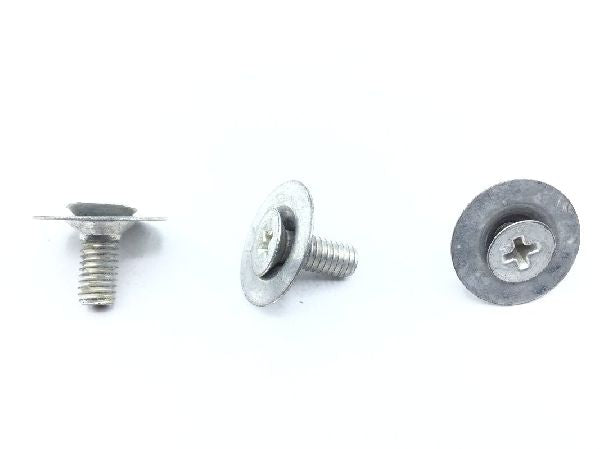

CA3105-1032-8 Assembled Washer Screw (4)

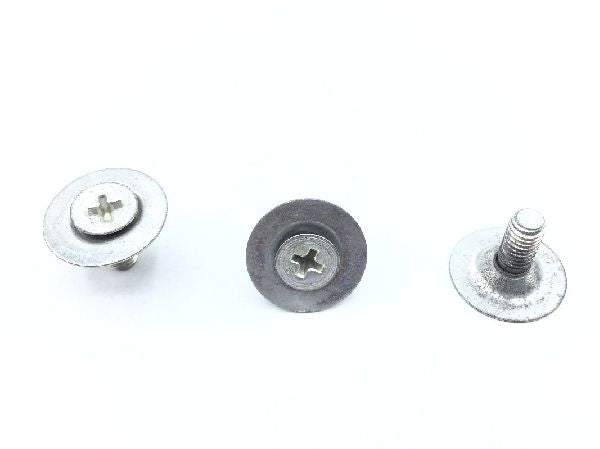

CA3105-1032-8 Assembled Washer Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

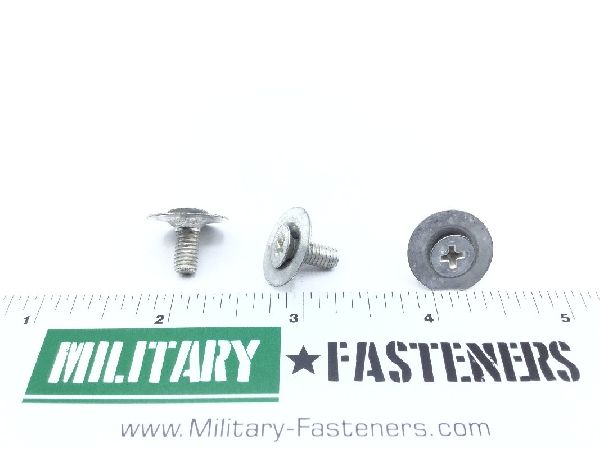

CA3105-1032-8 Assembled Washer Screw

ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $2.43

Units per Pack 25

Price per Pack $60.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $60.75

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.469 inches and 0.500 inches
Hardness Rating: 28.0 rockwell c and 34.0 rockwell c
Internal Drive Style: Cross recess type 1
Primary Washer Material Thickness: 0.017 inches
Primary Washer Outside Diameter: Between 0.645 inches and 0.665 inches
Primary Washer Style: Dome internal teeth
Secondary Washer Material Thickness: 0.017 inches
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Washer Quantity: 1
Head Diameter: Between 0.340 inches and 0.380 inches
