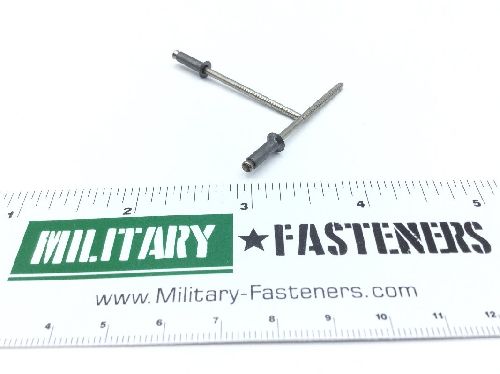

CCR264CS-4-05 Blind Rivet

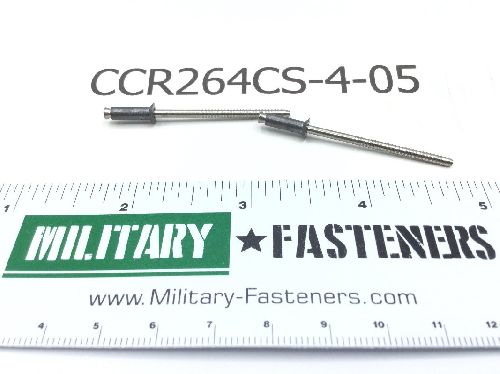

CCR264CS-4-05 Blind Rivet (2)

CCR264CS-4-05 Blind Rivet (3)

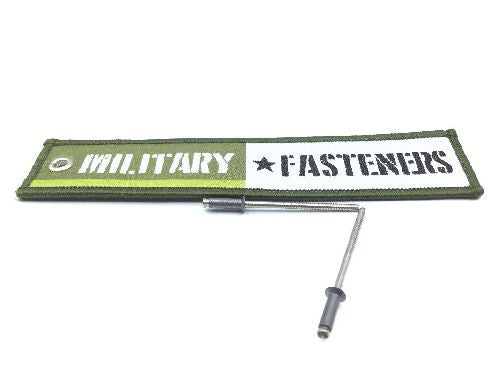

CCR264CS-4-05 Blind Rivet (4)

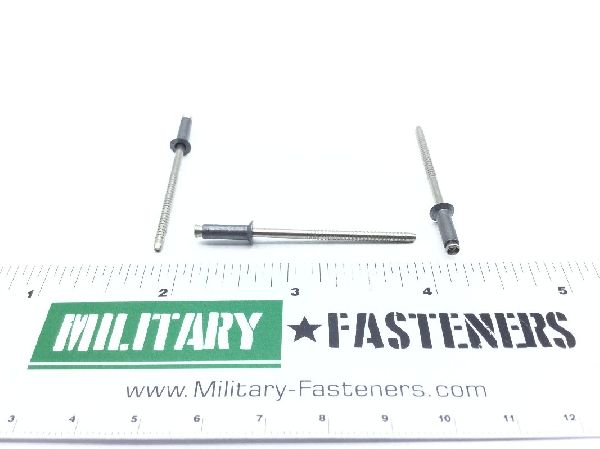

CCR264CS-4-05 Blind Rivet (5)

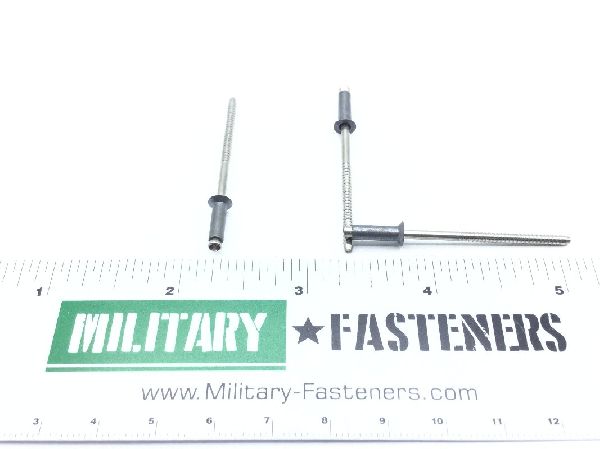

CCR264CS-4-05 Blind Rivet (6)

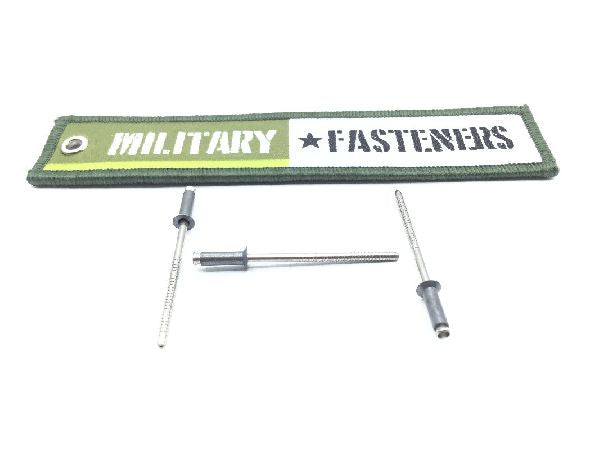

CCR264CS-4-05 Blind Rivet (7)

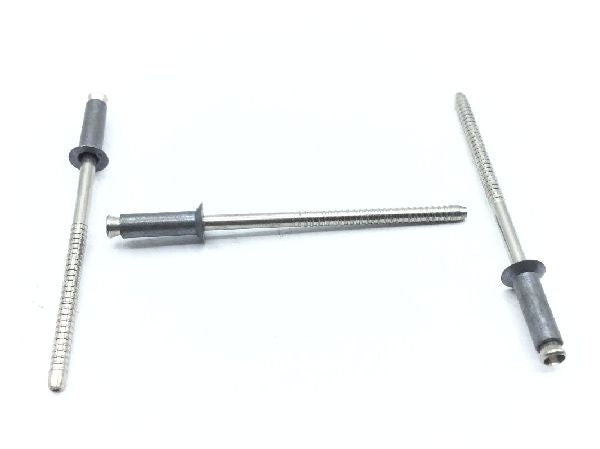

CCR264CS-4-05 Blind Rivet (8)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CCR264CS-4-05 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 305 stem

Surface Treatment

Qq-p-35 federal specification single treatment response stem

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Threaded stem
Fastener Length: 0.506 inches
Grip Length: Between 0.251 inches and 0.312 inches
Head Major Diameter: 0.225 inches
Material Specification: Ams 5731 assn standard single material response sleeve
Shank Diameter: Between 0.123 inches and 0.128 inches
Shank Style: Self-plugging high clinch shank
Lubrication: Dry film
