CCR264CS3-04 Blind Rivet
CCR264CS3-04 Blind Rivet (2)
CCR264CS3-04 Blind Rivet (3)
CCR264CS3-04 Blind Rivet (4)
CCR264CS3-04 Blind Rivet (5)
CCR264CS3-04 Blind Rivet (6)

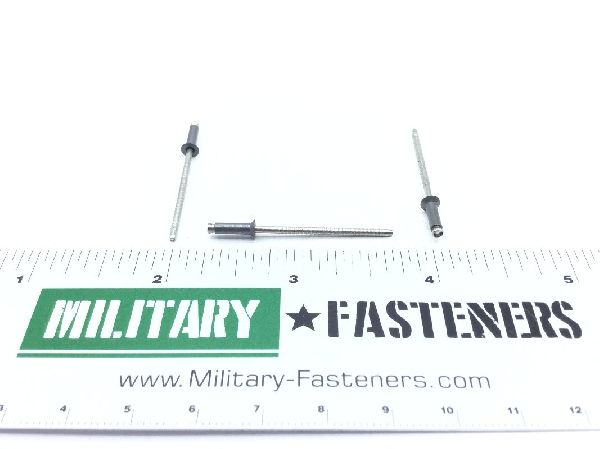

CCR264CS3-04 Blind Rivet

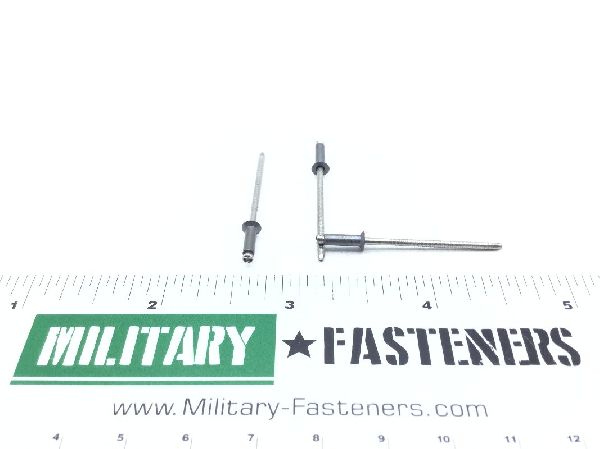

CCR264CS3-04 Blind Rivet (2)

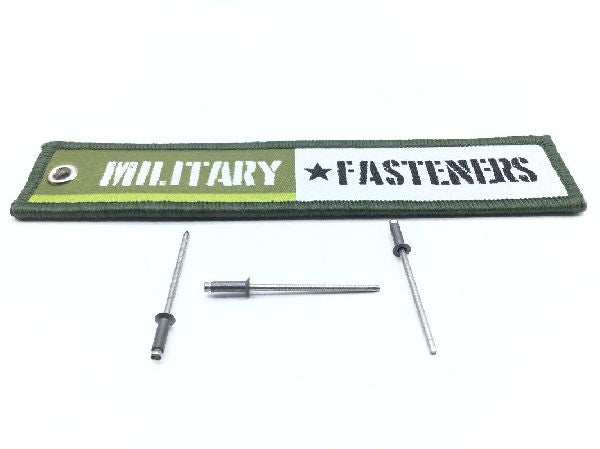

CCR264CS3-04 Blind Rivet (3)
CCR264CS3-04 Blind Rivet (4)
CCR264CS3-04 Blind Rivet (5)
CCR264CS3-04 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CCR264CS3-04 Blind Rivet

NSN
5320-01-094-5130
Product Series
CR
ECCN
EAR99
Schedule
7616.10.3000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk
Material
Steel comp 305 stem
Surface Treatment
Qq-p-35 federal specification single treatment response
Countersink Angle
Between 98.5 degrees and 101.5 degrees
Expansion Device
Serrated stem-type w
Fastener Length
0.265 inches
Grip Length
Between 0.188 inches and 0.25 inches
Head Major Diameter
0.183 inches
Material Specification
Astma495 assn standard single material response stem
Shank Diameter
Between 0.092 inches and 0.097 inches
