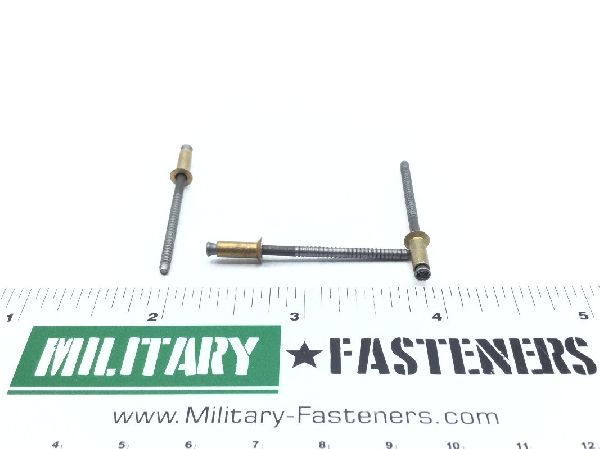

CCR264SS4-04 Blind Rivet

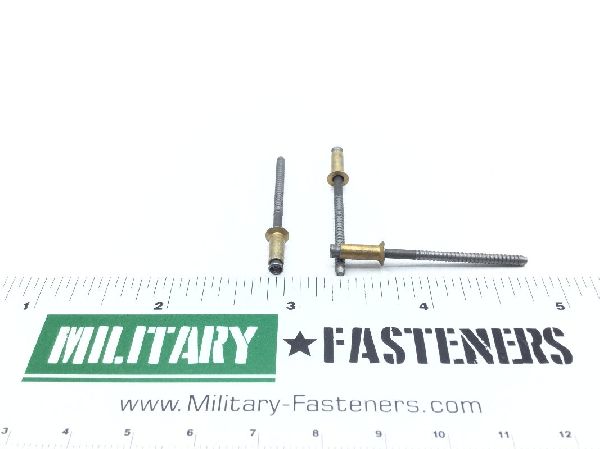

CCR264SS4-04 Blind Rivet (2)

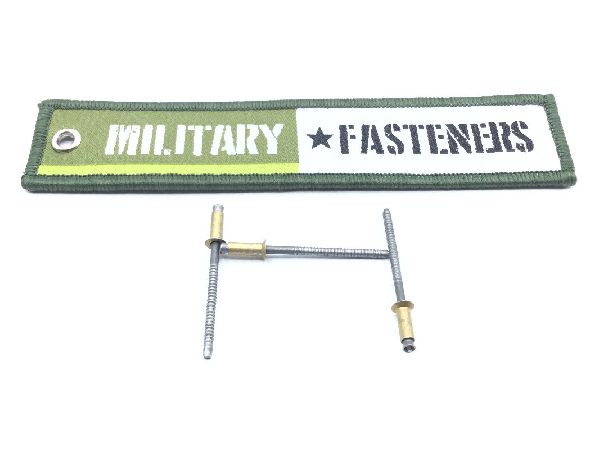

CCR264SS4-04 Blind Rivet (3)

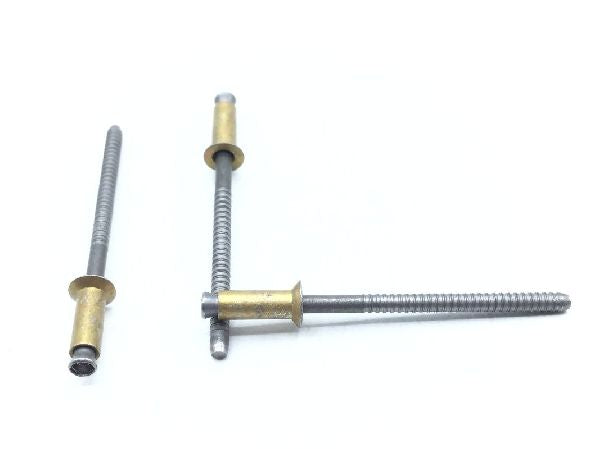

CCR264SS4-04 Blind Rivet (4)

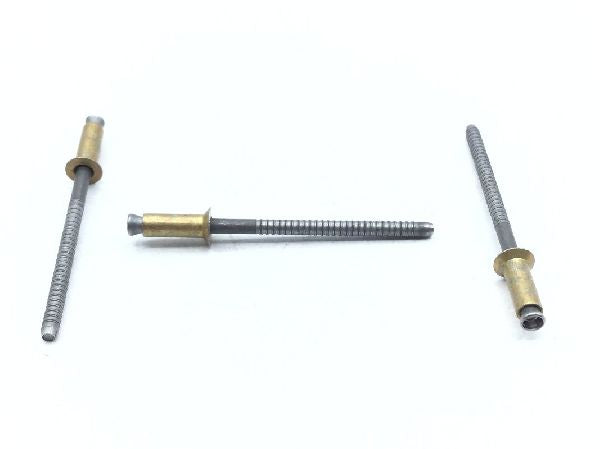

CCR264SS4-04 Blind Rivet (5)

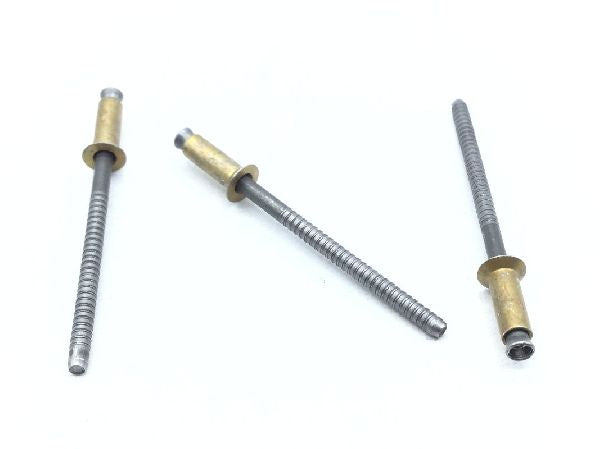

CCR264SS4-04 Blind Rivet (6)
CCR264SS4-04 Blind Rivet
CCR264SS4-04 Blind Rivet (2)
CCR264SS4-04 Blind Rivet (3)
CCR264SS4-04 Blind Rivet (4)
CCR264SS4-04 Blind Rivet (5)
CCR264SS4-04 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CCR264SS4-04 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7318.23.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk
Material
Steel comp 1018 mechanical lock
Surface Treatment
Type ii federal specification single treatment response bolt qq-p-416
Countersink Angle
Between 99 degrees and 101 degrees
Expansion Device
Serrated stem-type w
Fastener Length
Between 0.337 inches and 0.357 inches
Grip Length
Between 0.188 inches and 0.250 inches
Head Major Diameter
0.183 inches
Shank Diameter
Between 0.092 inches and 0.097 inches
Shank Style
Self-plugging high clinch shank
