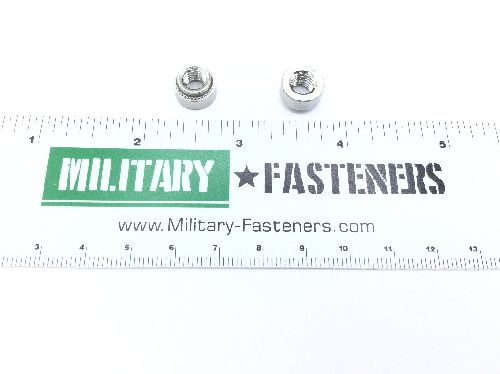

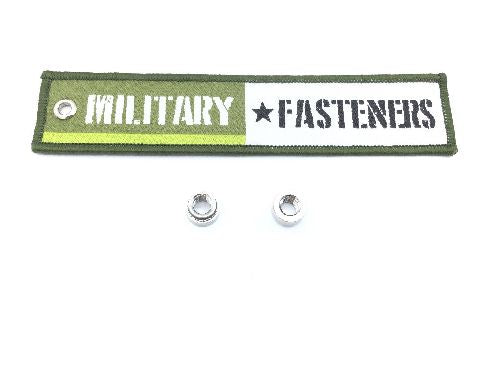

CLS-0428-2 Plain Clinch Nut

ECCN: 9A991
Schedule: 7318.16.0085

Price per Unit $0.83

Units per Pack 25

Price per Pack $20.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $20.75

Add item to quote

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.25 inches

Material Specification: Aisi assn standard single material response
Nut Diameter: Between 0.423 inches and 0.453 inches
Nut Height: Between 0.239 inches and 0.274 inches
Nut Style: Clinch
Pilot Diameter: Between 0.339 inches and 0.342 inches
Pilot Length: Between 0.082 inches and 0.087 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
