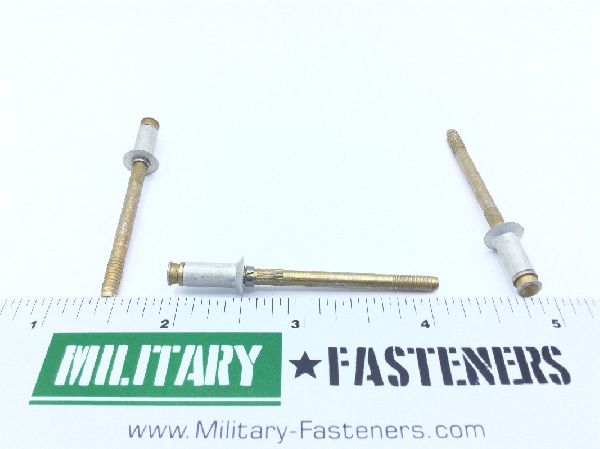

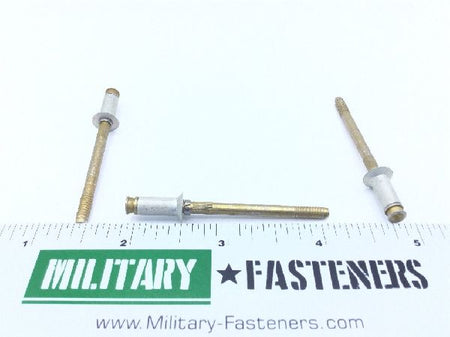

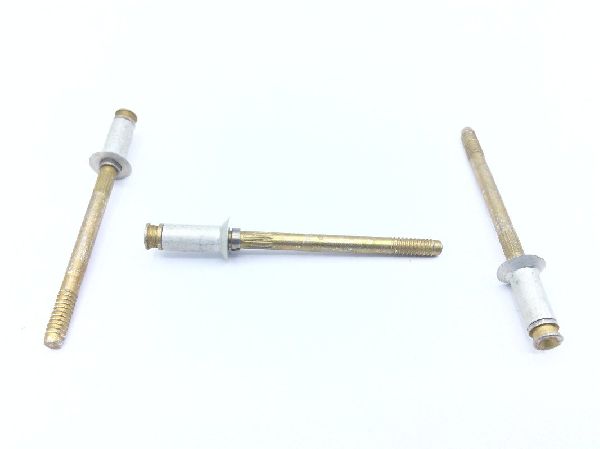

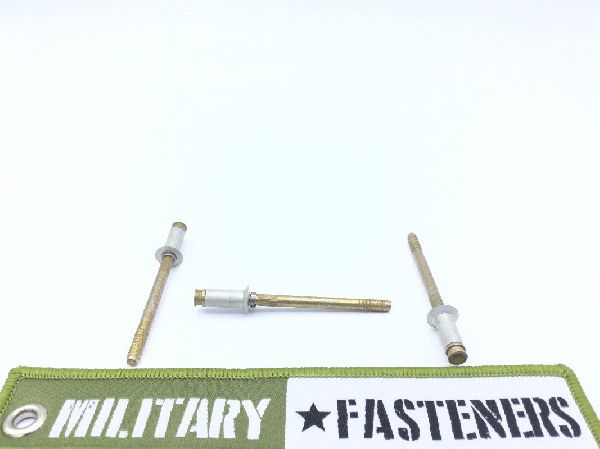

CR2248-6-05 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Nickel alloy 400 locking ring or nickel alloy r-405 locking ring

Surface Treatment

Ty2 federal specification single treatment response stem qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.531 inches
Grip Length: Between 0.251 inches and 0.312 inches
Head Major Diameter: Between 0.349 inches and 0.357 inches
Material Specification: Qq-a-430 federal specification single material response sleeve
Shank Diameter: Between 0.200 inches and 0.204 inches
Shank Style: Self-plugging mechanically locked stem
Specification Data: 80205-nas1739 professional/industrial association standard
