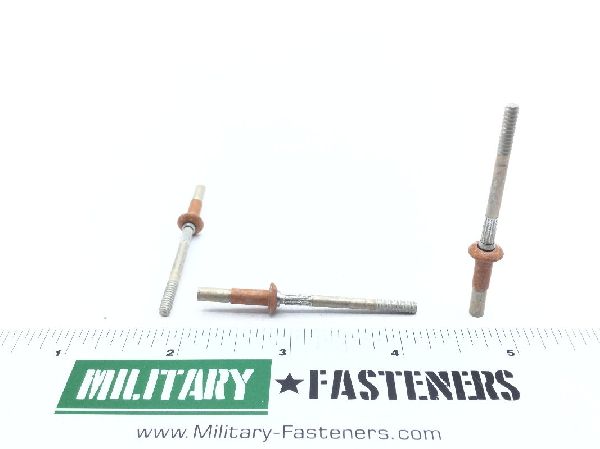

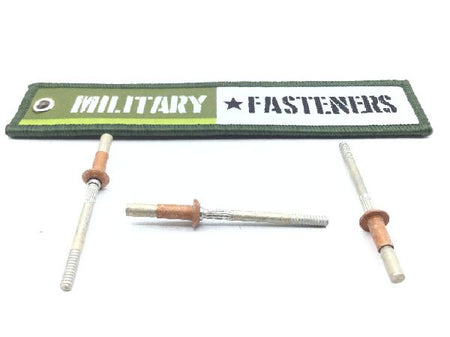

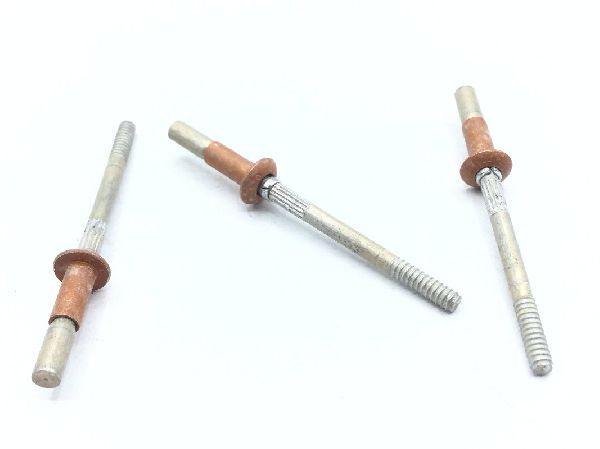

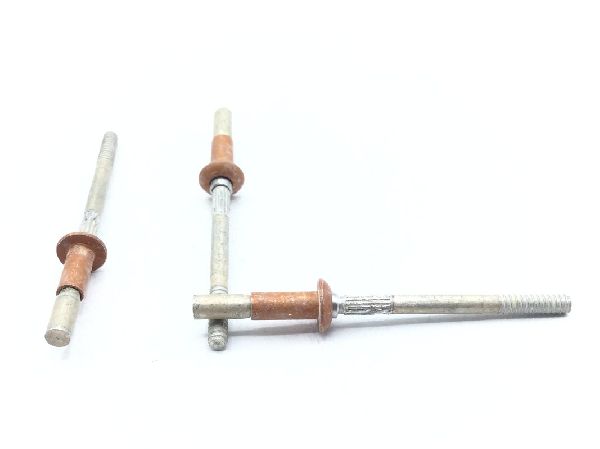

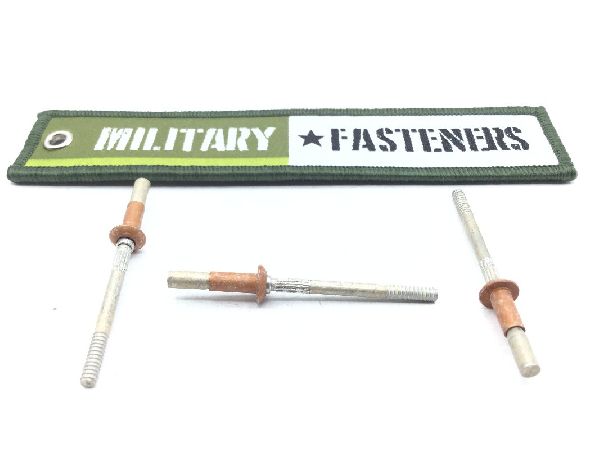

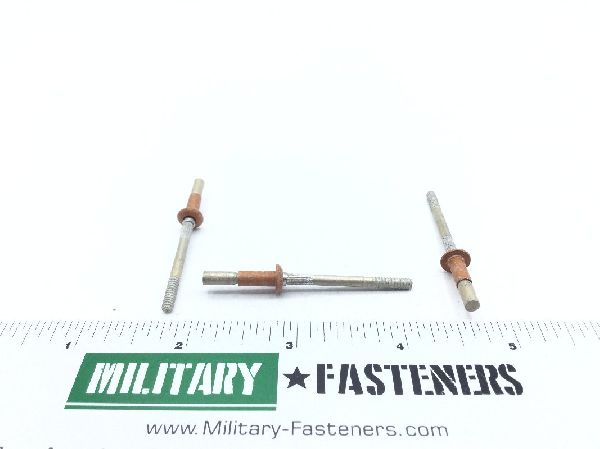

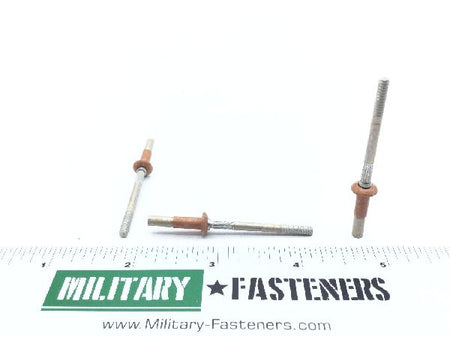

CR2263-5-4 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Aluminum alloy 7075 stem

Surface Treatment

Mil-a-8625 military specification 1st treatment response sleeve or mil-c-5541 military specification 2nd treatment response sleeve

Expansion Device: Serrated stem-type w
Fastener Length: 0.388 inches
Grip Length: Between 0.188 inches and 0.250 inches
Head Height: Between 0.067 inches and 0.077 inches
Head Major Diameter: Between 0.296 inches and 0.328 inches
Heat Treatment: H-38 strain hardened locking ring
Material Specification: Qq-a-430 federal specification single material response stem
Shank Diameter: Between 0.155 inches and 0.159 inches
Shank Style: Self-plugging
Shear Strength: 325 single pounds per square inch
Specification Data: 80205-nas1398 professional/industrial association standard
