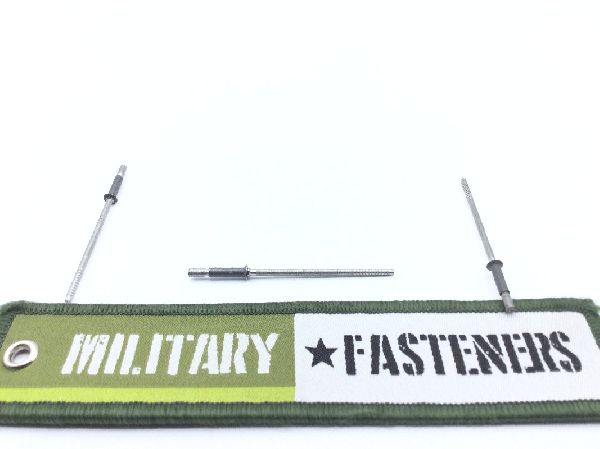

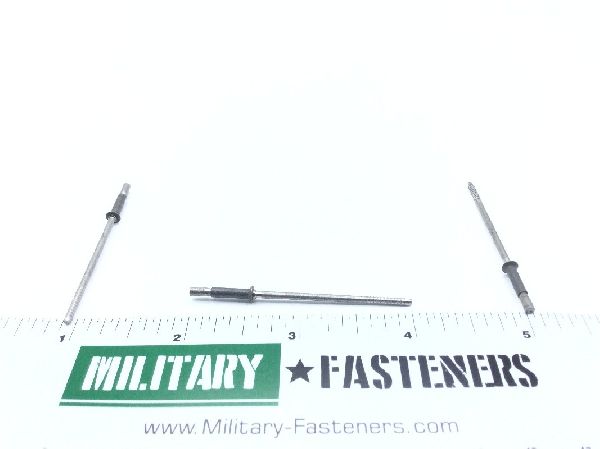

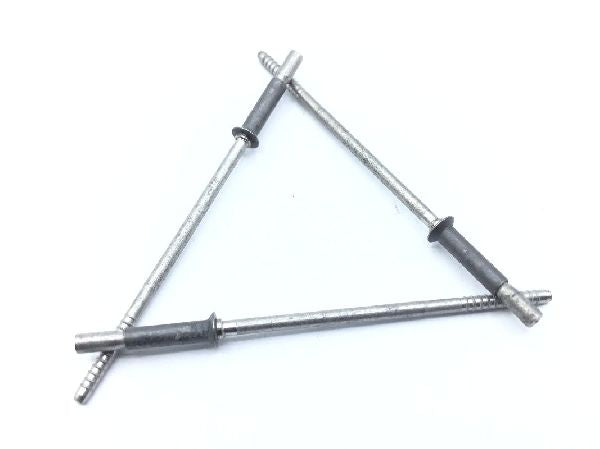

CR2662-3-05 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Iron alloy 660 sleeve

Countersink Angle: Between 98.5 degrees and 101.5 degrees
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.396 inches and 0.416 inches
Grip Length: Between 0.251 inches and 0.312 inches
Head Major Diameter: 0.183 inches
Material Specification: Qq-n-281 federal specification all material responses locking ring
Shank Diameter: Between 0.093 inches and 0.097 inches
Shank Style: Self-plugging mechanically locked stem
