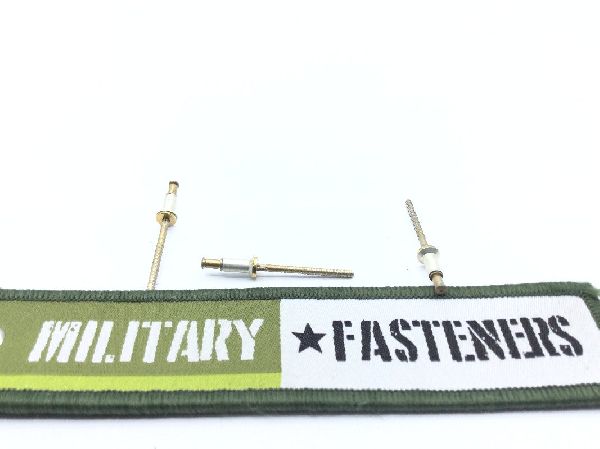

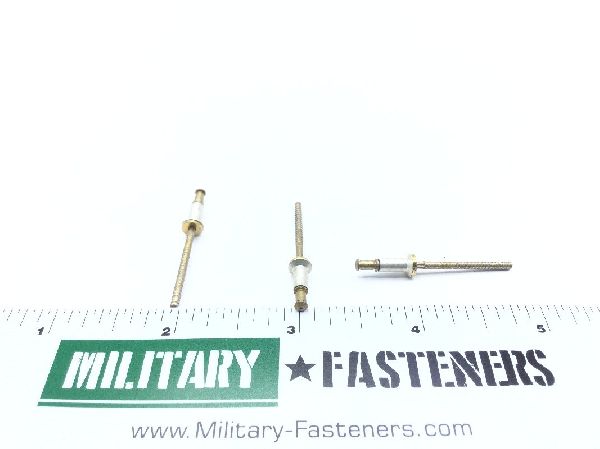

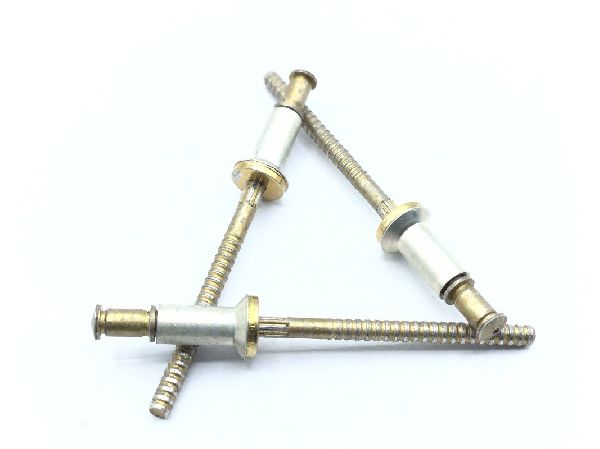

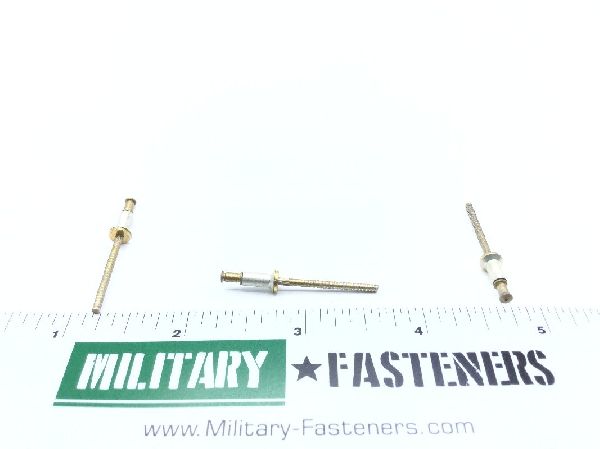

CR3212-4-03 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7616.10.3000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk

Material

Steel comp 8740 stem

Surface Treatment

Class 2 federal specification single treatment response stem type 2 qq-p-416

Countersink Angle: Between 99 degrees and 101 degrees
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.277 inches and 0.297 inches
Grip Length: Between 0.126 inches and 0.187 inches
Head Major Diameter: 0.229 inches
Material Specification: Ams 6322 assn standard single material response stem
Shank Diameter: Between 0.125 inches and 0.129 inches
Special Features: Ns
