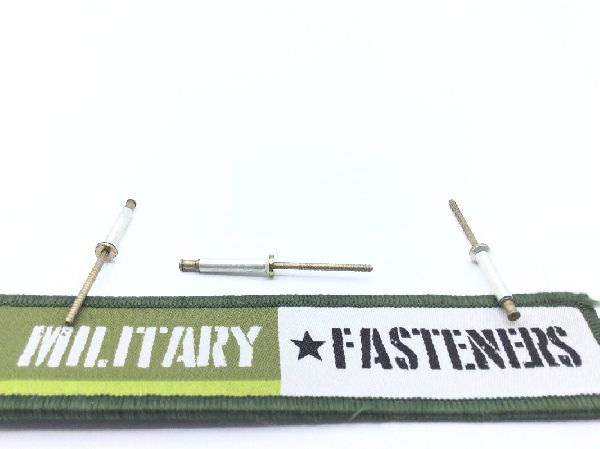

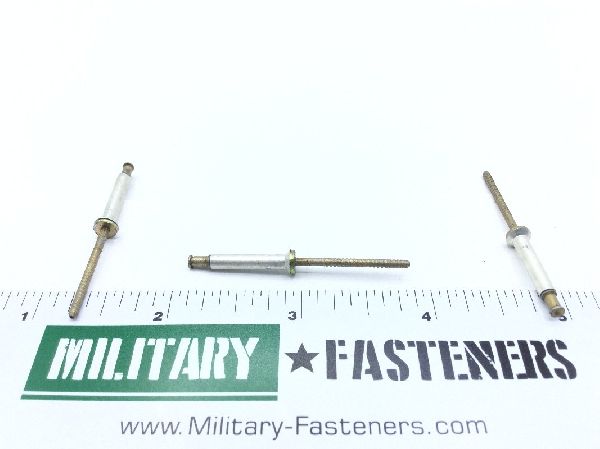

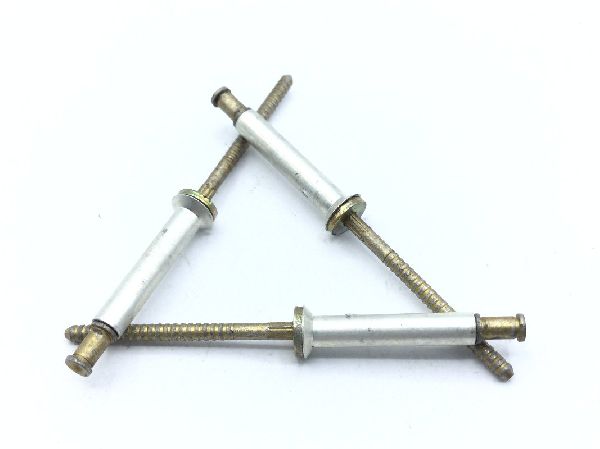

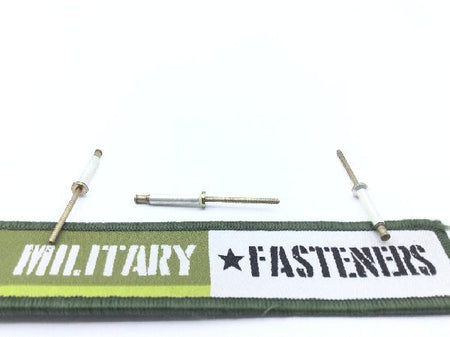

CR3212-4-09 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk

Material

Steel comp 8740 stem

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response stem

Countersink Angle: Between 99 degrees and 101 degrees
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.612 inches and 0.632 inches
Grip Length: Between 0.501 inches and 0.562 inches
Head Major Diameter: 0.229 inches
Material Specification: Ams 6322 assn standard single material response stem
Shank Diameter: Between 0.125 inches and 0.129 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: Ns
