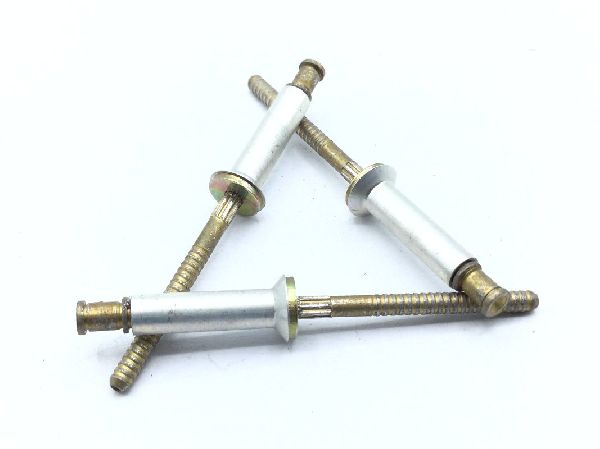

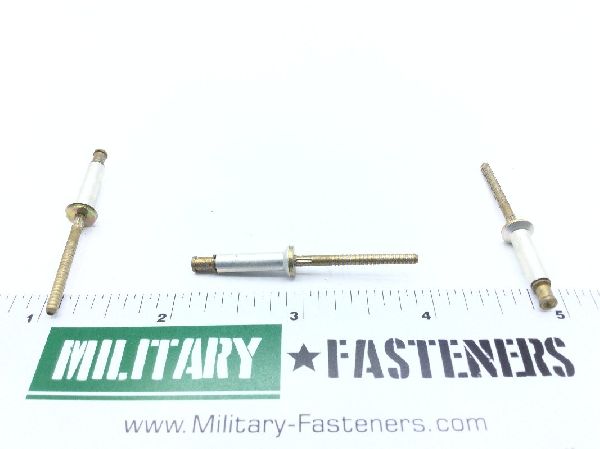

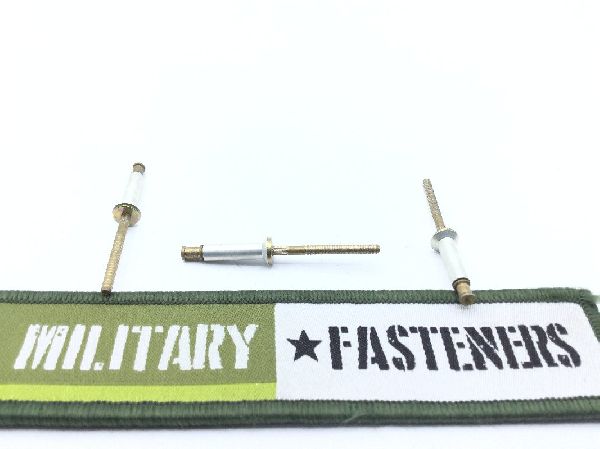

CR3212-5-08 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $1.94

Units per Pack 100

Price per Pack $194.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $194.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 5056 sleeve

Surface Treatment

Class 2 federal specification single treatment response stem type 2 qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.595 inches and 0.615 inches
Grip Length: Between 0.438 inches and 0.500 inches
Head Major Diameter: 0.290 inches
Material Specification: Qq-a-430 federal specification single material response sleeve
Shank Diameter: Between 0.156 inches and 0.160 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: Ns
