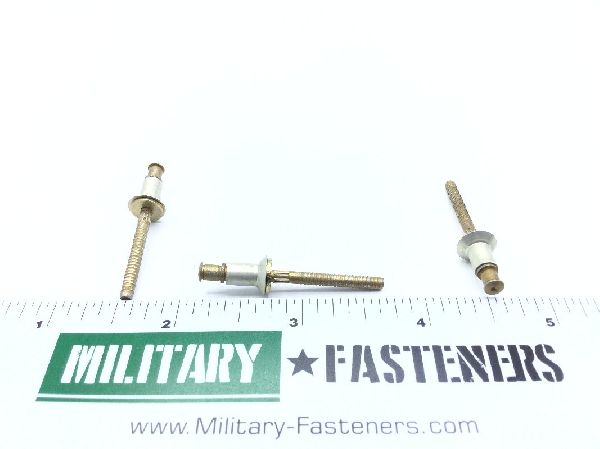

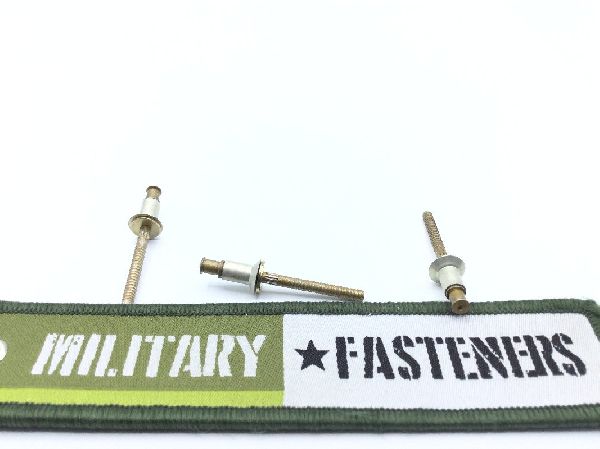

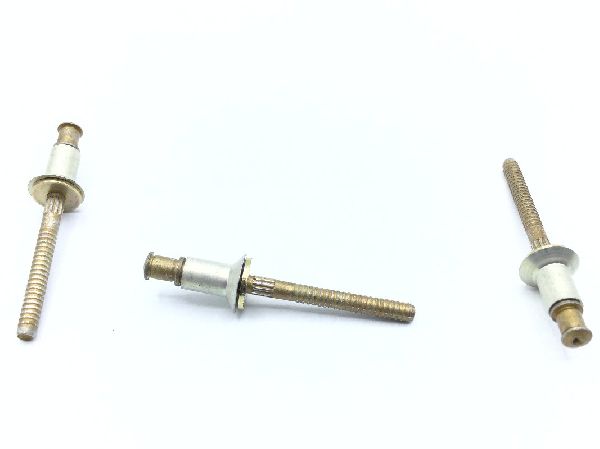

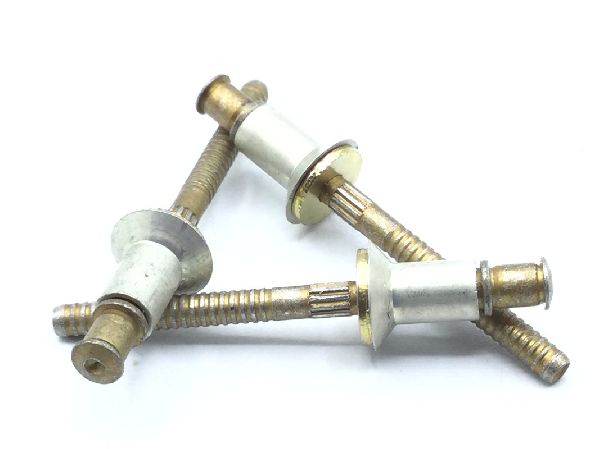

CR3212-6-03 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 8740 stem

Surface Treatment

Class 2 federal specification all treatment responses stem type 2 qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.315 inches and 0.335 inches
Grip Length: Between 0.126 inches and 0.187 inches
Head Major Diameter: 0.357 inches
Material Specification: Ams 6322 assn standard single material response stem
Shank Diameter: Between 0.188 inches and 0.192 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: Ns
