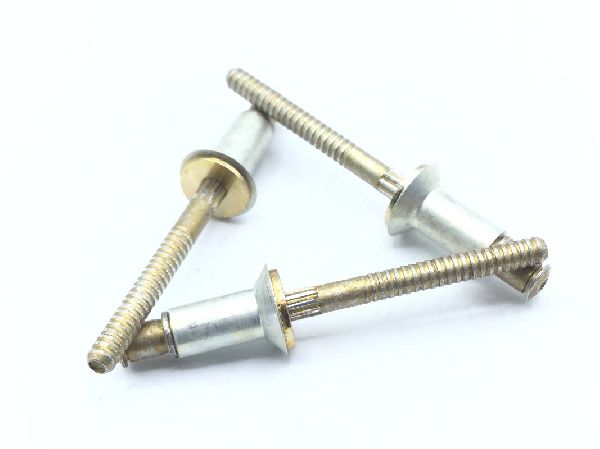

CR3212-6-04 Blind Rivet
CR3212-6-04 Blind Rivet (2)

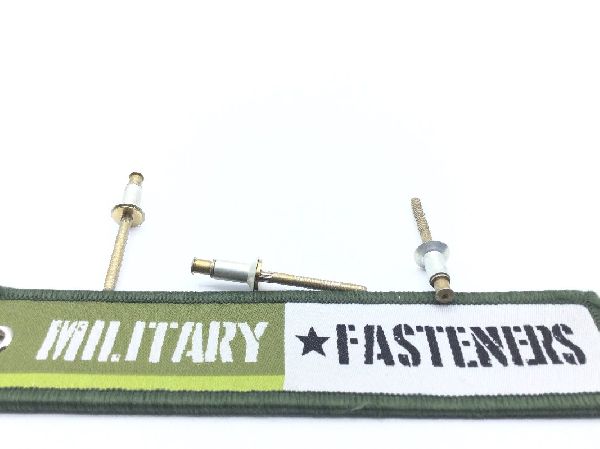

CR3212-6-04 Blind Rivet (3)

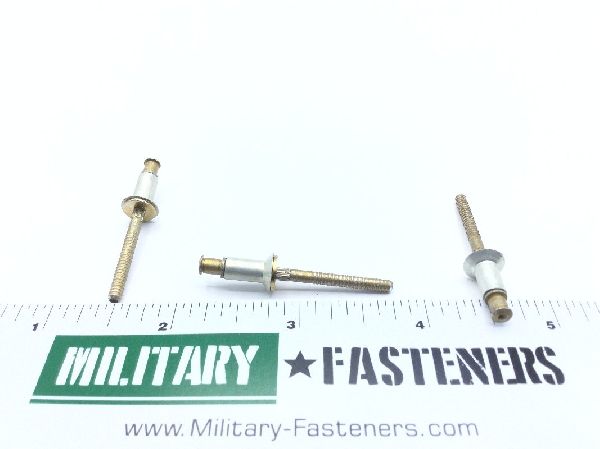

CR3212-6-04 Blind Rivet (4)
CR3212-6-04 Blind Rivet
CR3212-6-04 Blind Rivet (2)
CR3212-6-04 Blind Rivet (3)
CR3212-6-04 Blind Rivet (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CR3212-6-04 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7318.23.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Aluminum alloy 5056 sleeve
Surface Treatment
Class 2 federal specification single treatment response stem type 2 qq-p-416
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Expansion Device
Serrated stem-type w
Fastener Length
Between 0.377 inches and 0.397 inches
Grip Length
Between 0.188 inches and 0.250 inches
Head Major Diameter
0.357 inches
Material Specification
Qq-a-430 federal specification single material response sleeve
Shank Diameter
Between 0.188 inches and 0.192 inches
Special Features
Ns
