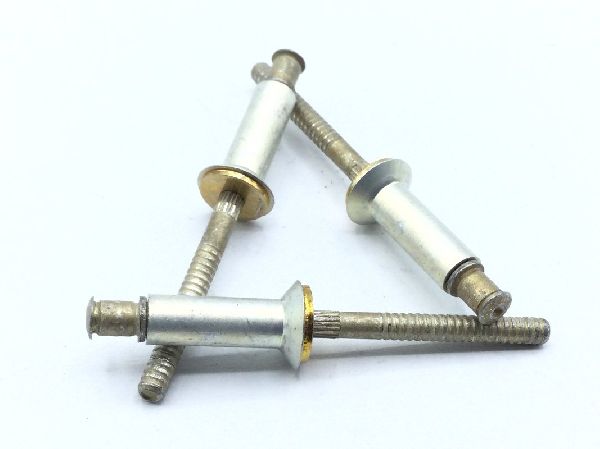

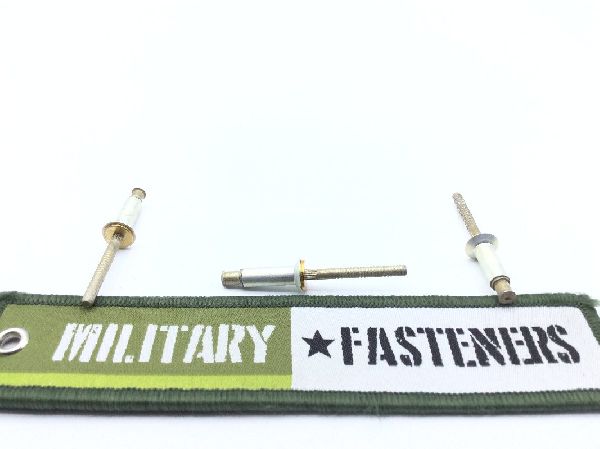

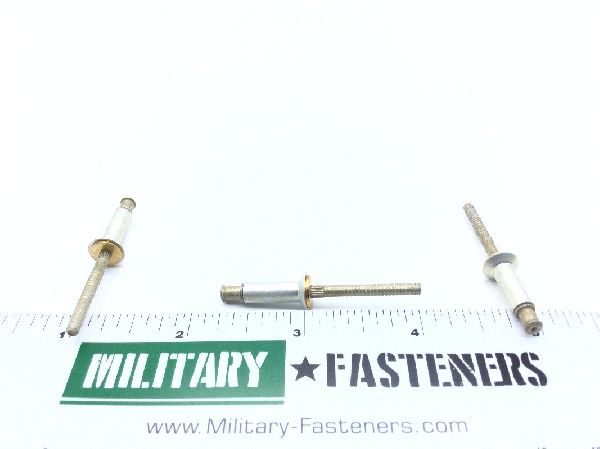

CR3212-6-07 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $2.26

Units per Pack 100

Price per Pack $226.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $226.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 8740 stem

Surface Treatment

Class 2 federal specification all treatment responses stem type 2 qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.565 inches and 0.585 inches
Grip Length: Between 0.376 inches and 0.437 inches
Head Major Diameter: 0.357 inches
Material Specification: Ams 6322 assn standard single material response stem
Shank Diameter: Between 0.188 inches and 0.192 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: Ns
