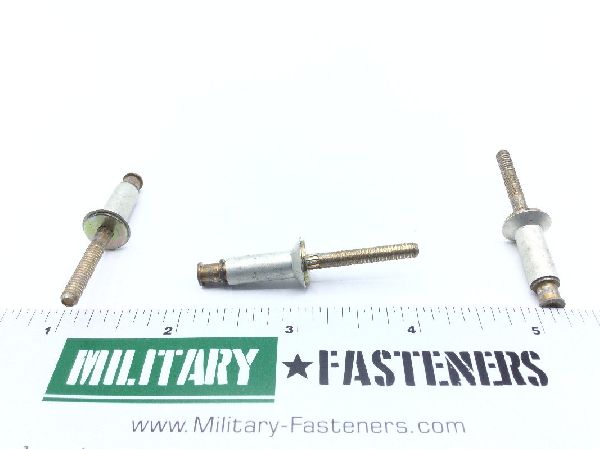

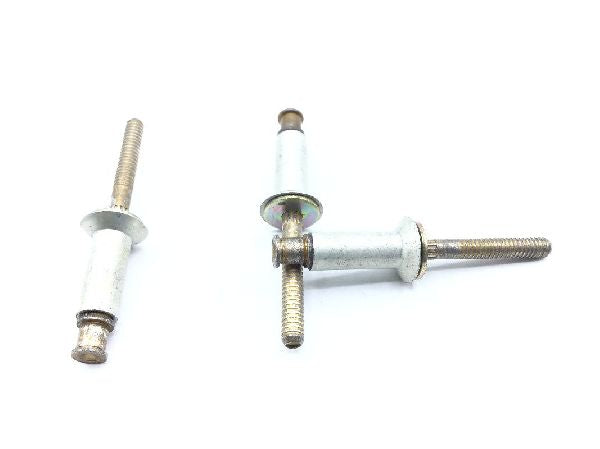

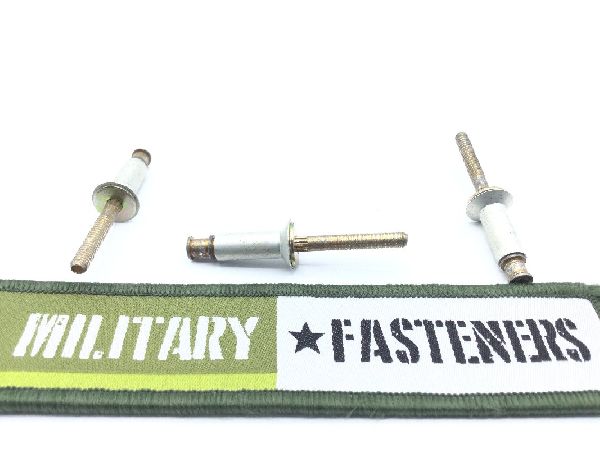

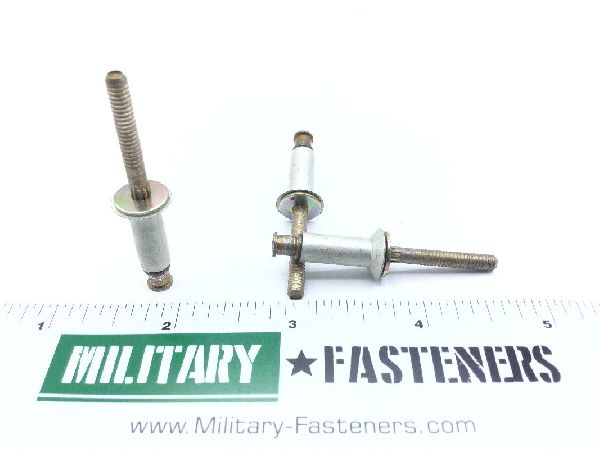

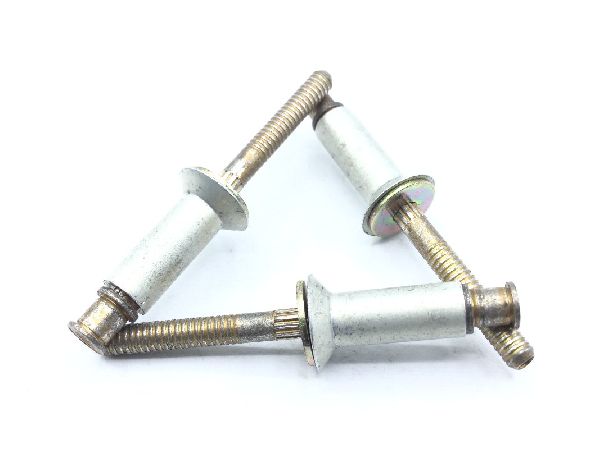

CR3212-8-08 Blind Rivet
CR3212-8-08 Blind Rivet (2)
CR3212-8-08 Blind Rivet (3)
CR3212-8-08 Blind Rivet (4)
CR3212-8-08 Blind Rivet (5)
CR3212-8-08 Blind Rivet (6)
CR3212-8-08 Blind Rivet
CR3212-8-08 Blind Rivet (2)
CR3212-8-08 Blind Rivet (3)
CR3212-8-08 Blind Rivet (4)
CR3212-8-08 Blind Rivet (5)
CR3212-8-08 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CR3212-8-08 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7318.23.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk
Material
Aluminum alloy 5056 sleevesteel comp 8740 stem
Surface Treatment
Cl 2 federal specification single treatment response stem type 2 mil-c-5541 military specification single treatment response sleeveqq-p-416
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Expansion Device
Serrated stem-type w
Fastener Length
Between 0.607 inches and 0.637 inches
Grip Length
Between 0.438 inches and 0.500 inches
Head Major Diameter
Between 0.472 inches and 0.480 inches
Material Specification
Qq-a-430 federal specification single material response sleeveams 6322 assn standard single material response stem
Shank Diameter
Between 0.252 inches and 0.258 inches
Shank Style
Self-plugging mechanically locked stem
