CR3242-4-04 Blind Rivet

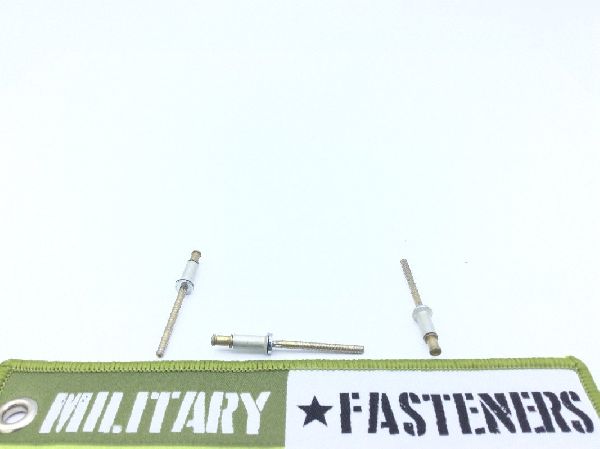

CR3242-4-04 Blind Rivet (2)

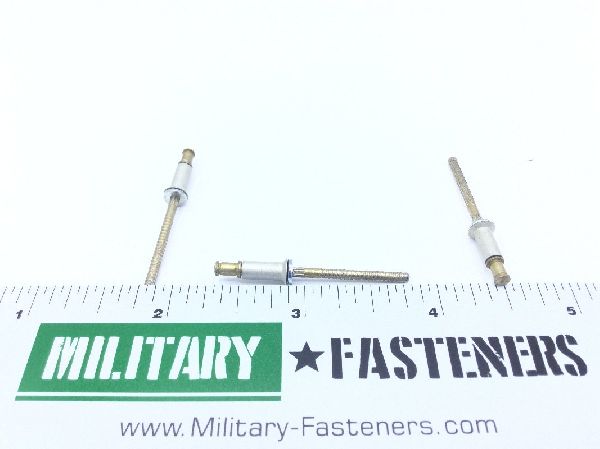

CR3242-4-04 Blind Rivet (3)
CR3242-4-04 Blind Rivet
CR3242-4-04 Blind Rivet (2)
CR3242-4-04 Blind Rivet (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CR3242-4-04 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7318.23.0000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Steel comp 8740 stem
Surface Treatment
Cl 3 federal specification single treatment response stem type 2 qq-p-416
Countersink Angle
100.0 degrees
Expansion Device
Serrated stem-type w
Fastener Length
Between 0.330 inches and 0.350 inches
Grip Length
Between 0.188 inches and 0.250 inches
Head Major Diameter
0.211 inches
Material Specification
Ams 6322 assn standard single material response stem
Shank Diameter
Between 0.140 inches and 0.143 inches
Special Features
Ns
