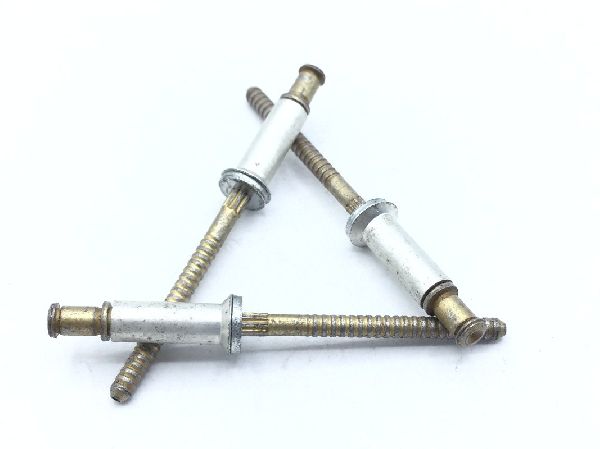

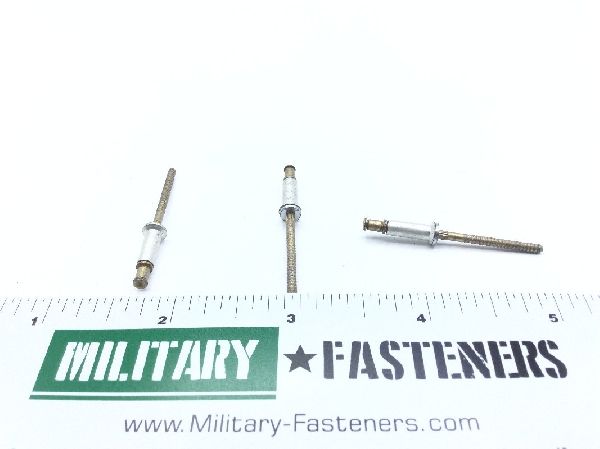

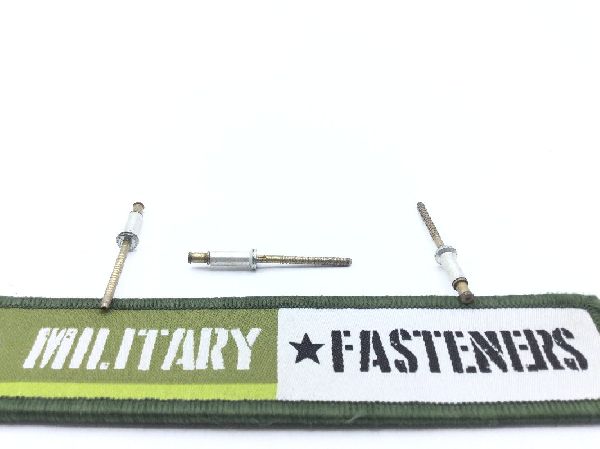

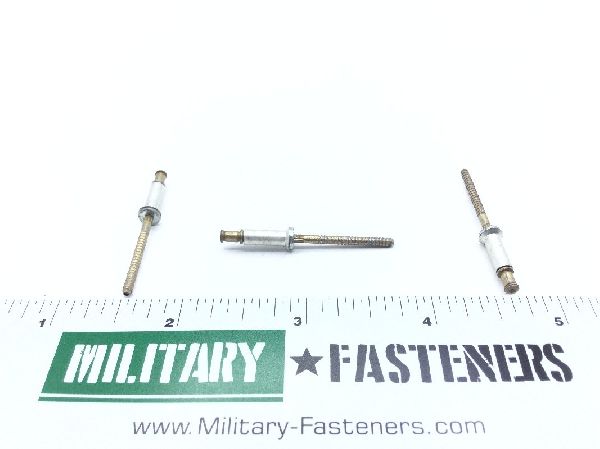

CR3242-4-05 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk
Material
Aluminum alloy 5056 body
Surface Treatment
Mil-c-5541 military specification single treatment response body
Countersink Angle
100.0 degrees
Expansion Device
Serrated stem-type w
Fastener Length
Between 0.393 inches and 0.413 inches
Grip Length
Between 0.251 inches and 0.312 inches
Head Major Diameter
0.211 inches
Material Specification
Qq-a-430 federal specification single material response body
Shank Diameter
Between 0.140 inches and 0.143 inches
Shank Style
Self-plugging mechanically locked stem
Special Features
Ns
