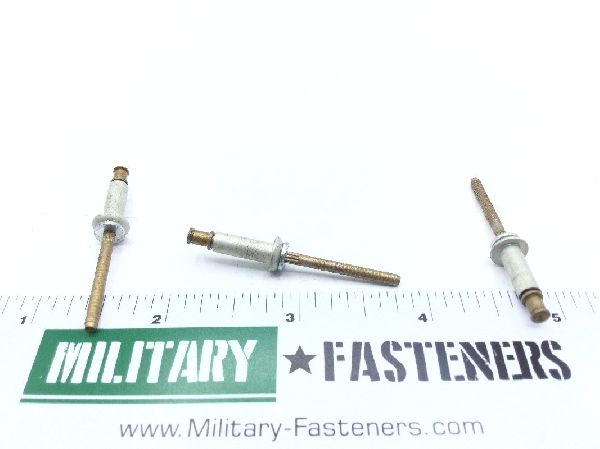

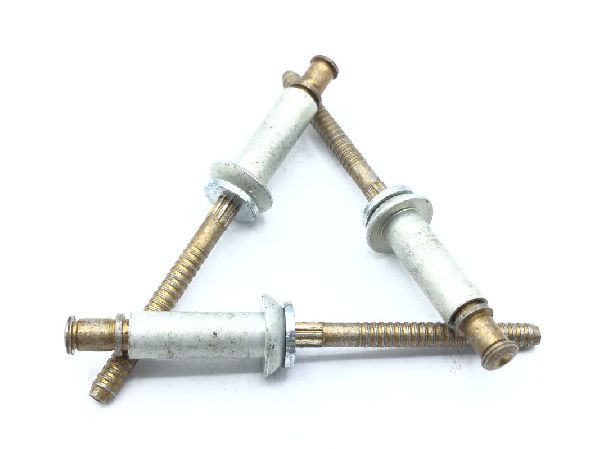

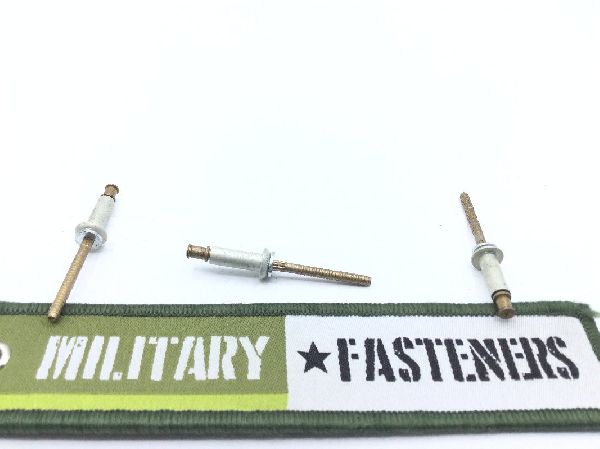

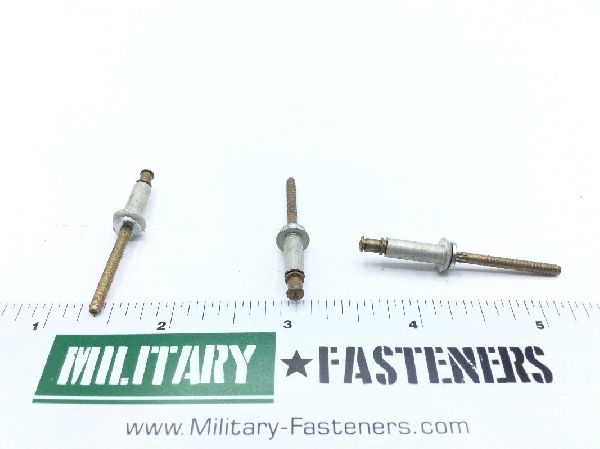

CR3243-5-06 Blind Rivet

NSN: 5320-01-033-8178
Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Steel comp 8740 stem

Surface Treatment

Class 3 federal specification single treatment response stem type 2 qq-p-416

Criticality Code Justification: Agav
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.495 inches and 0.515 inches
Grip Length: Between 0.313 inches and 0.375 inches
Head Height: Between 0.067 inches and 0.077 inches
Head Major Diameter: Between 0.296 inches and 0.328 inches
Iii End Application: The item is a flight safety critical aircraft part (fscap).
Material Specification: Ams 6322 assn standard single material response stem
Shank Diameter: Between 0.173 inches and 0.176 inches
Shank Style: Self-plugging mechanically locked stem
