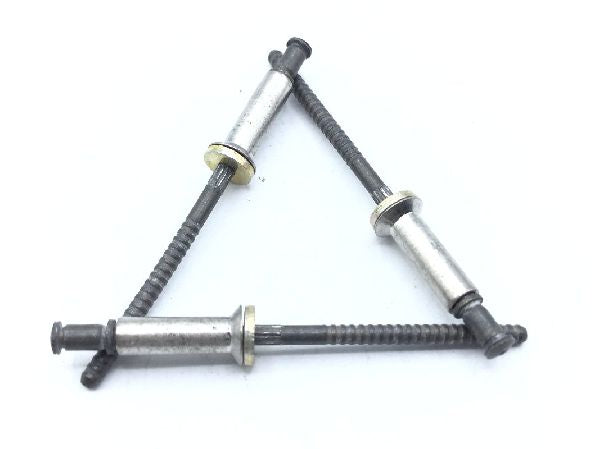

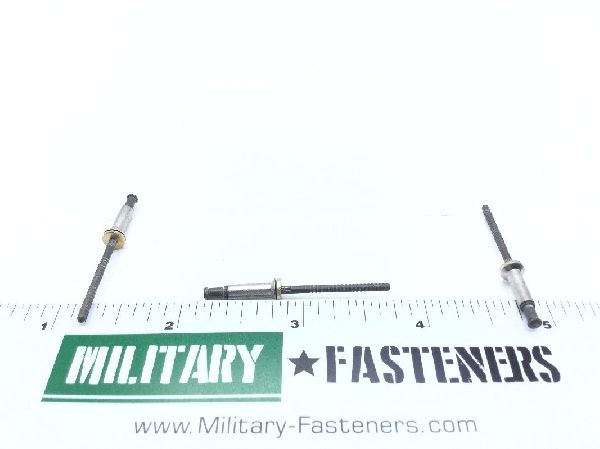

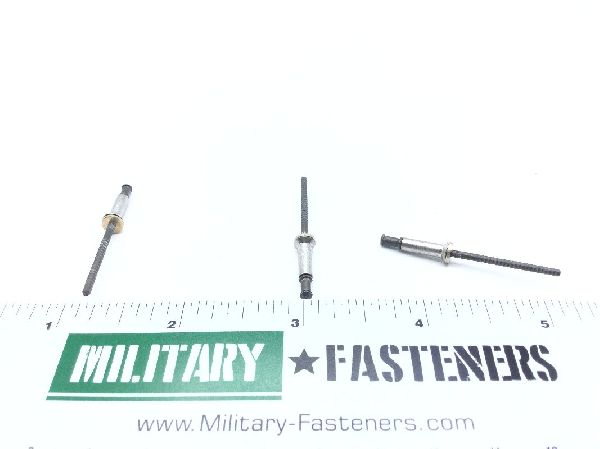

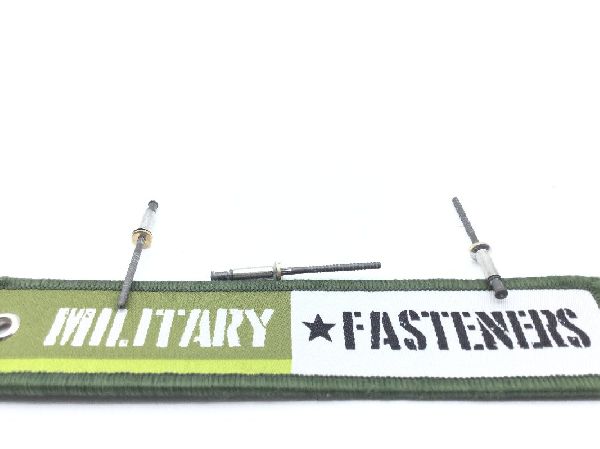

CR3522-4-05 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk
Material
Stainless steel locking ring
Countersink Angle
100 degrees
Expansion Device
Serrated stem-type w
Fastener Length
0.630 inches
Grip Length
Between 0.251 inches and 0.312 inches
Head Major Diameter
0.225 inches
Material Specification
Ams5731 assn standard 1st material response locking ring
Shank Diameter
0.126 inches
Shank Style
Self-plugging high clinch shank
Lubrication
Dry film
