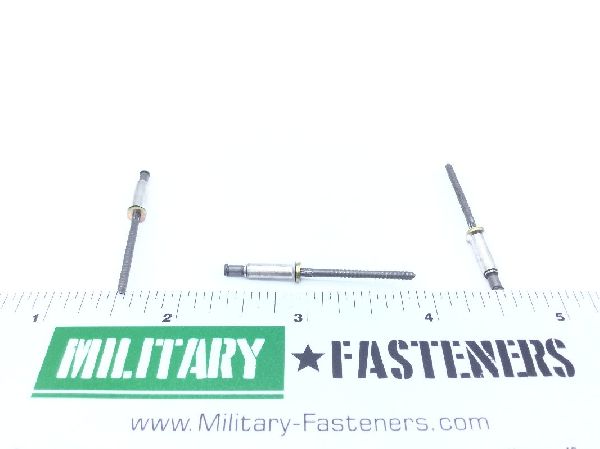

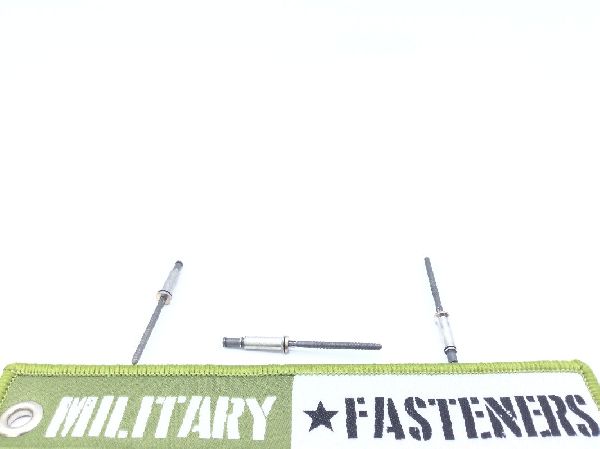

CR3524-4-05 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Nickel alloy 400 sleeve

Countersink Angle: Between 98.5 degrees and 101.5 degrees
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.382 inches and 0.412 inches
Grip Length: Between 0.251 inches and 0.312 inches
Head Major Diameter: 0.196 inches
Material Specification: Qq-n-281 federal specification single material response sleeve
Shank Diameter: Between 0.125 inches and 0.129 inches
Shank Style: Self-plugging mechanically locked stem
