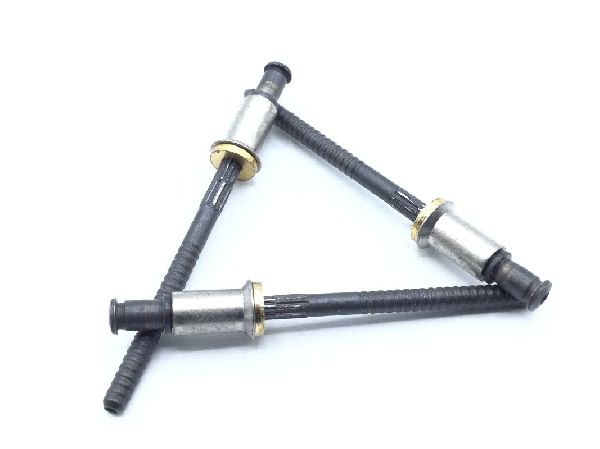

CR3524-5-03 Blind Rivet
CR3524-5-03 Blind Rivet (2)
CR3524-5-03 Blind Rivet (3)

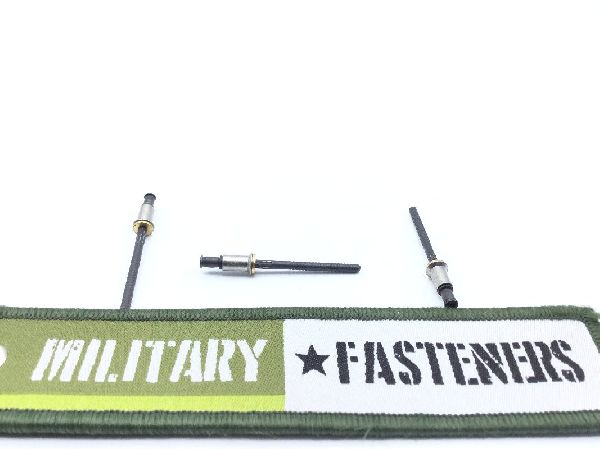

CR3524-5-03 Blind Rivet (4)

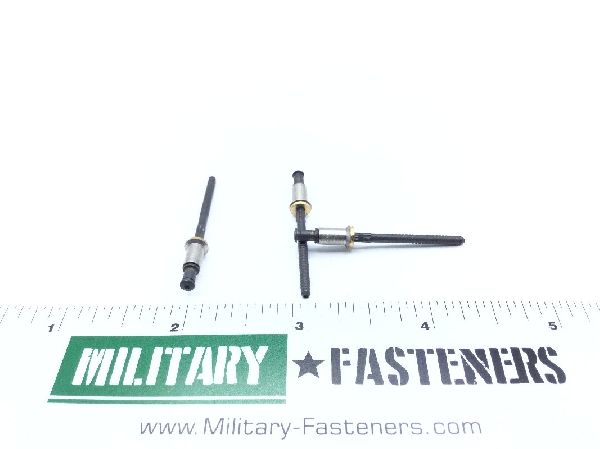

CR3524-5-03 Blind Rivet (5)

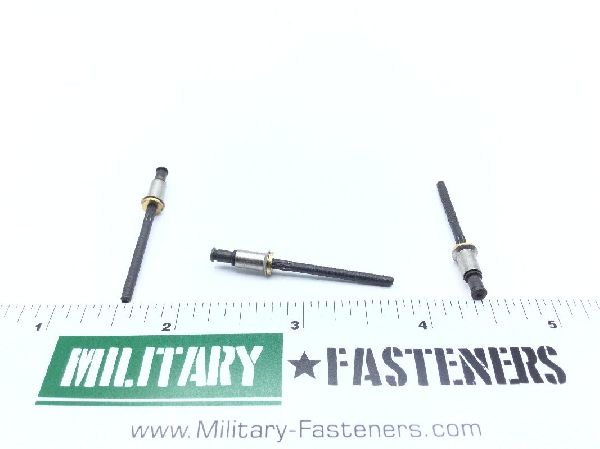

CR3524-5-03 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CR3524-5-03 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7318.23.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Nickel alloy r-405 sleeve or nickel alloy 400 sleeve
Countersink Angle
Between 98.5 degrees and 101.5 degrees
Expansion Device
Plain stem-type t
Grip Length
Between 0.126 inches and 0.187 inches
Head Major Diameter
Between 0.203 inches and 0.235 inches
Material Specification
Ams 5657 assn standard single material response stem
Shank Diameter
Between 0.156 inches and 0.160 inches
Shank Style
Self-plugging mechanically locked stem
Specification Data
80205-nas9309 professional/industrial association standard
