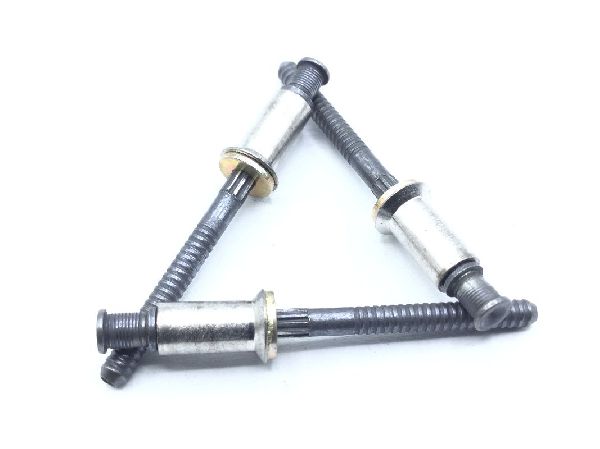

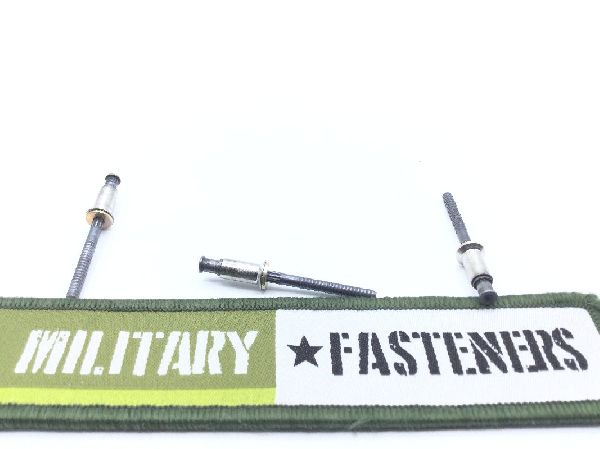

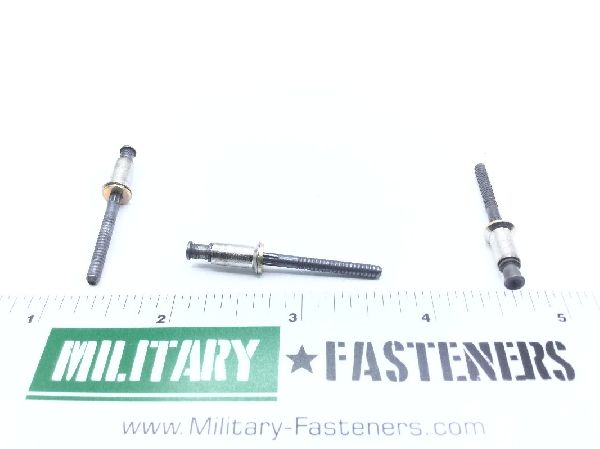

CR3524-6-04 Blind Rivet
CR3524-6-04 Blind Rivet (2)
CR3524-6-04 Blind Rivet (3)
CR3524-6-04 Blind Rivet (4)
CR3524-6-04 Blind Rivet
CR3524-6-04 Blind Rivet (2)
CR3524-6-04 Blind Rivet (3)
CR3524-6-04 Blind Rivet (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CR3524-6-04 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Nickel alloy 400 sleeve
Countersink Angle
Between 98.5 degrees and 101.5 degrees
Expansion Device
Serrated stem-type w
Fastener Length
Between 0.357 inches and 0.387 inches
Grip Length
Between 0.188 inches and 0.250 inches
Head Major Diameter
0.303 inches
Material Specification
Qq-n-281 federal specification single material response sleeve
Shank Diameter
Between 0.188 inches and 0.192 inches
