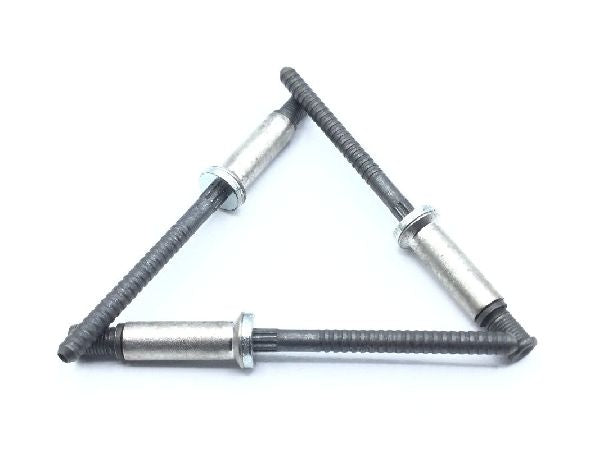

CR3552-4-05 Blind Rivet

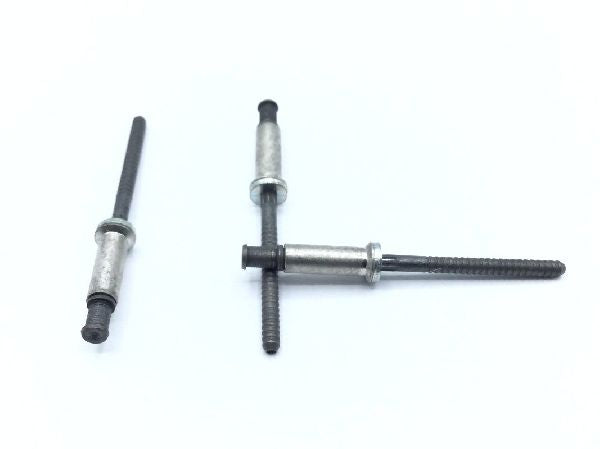

CR3552-4-05 Blind Rivet (2)
CR3552-4-05 Blind Rivet (3)

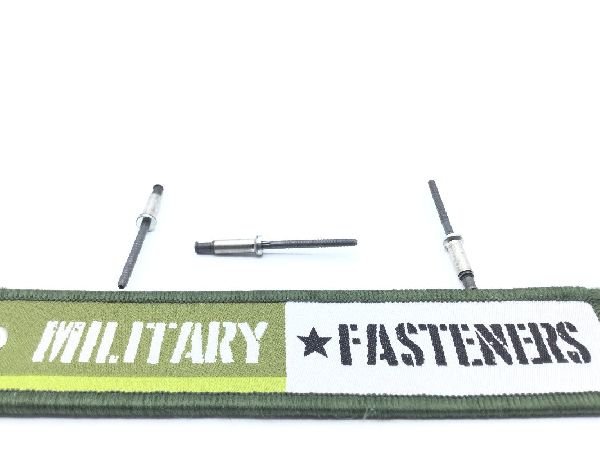

CR3552-4-05 Blind Rivet (4)

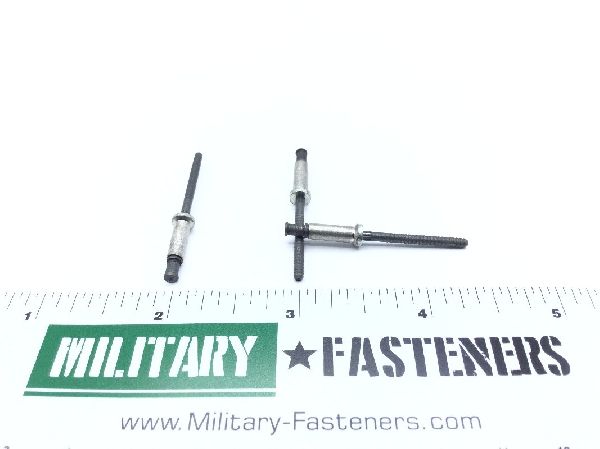

CR3552-4-05 Blind Rivet (5)

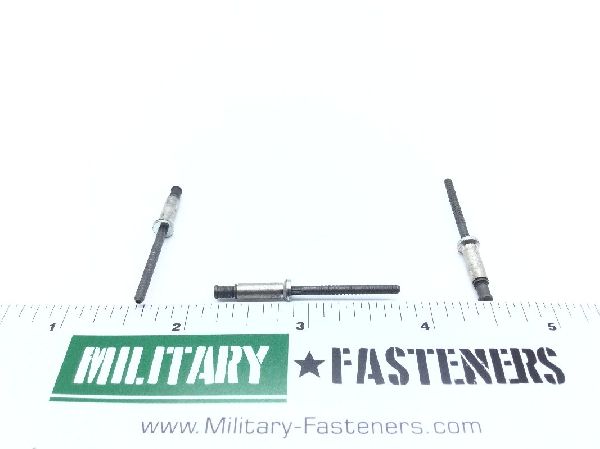

CR3552-4-05 Blind Rivet (6)
CR3552-4-05 Blind Rivet
CR3552-4-05 Blind Rivet (2)
CR3552-4-05 Blind Rivet (3)
CR3552-4-05 Blind Rivet (4)
CR3552-4-05 Blind Rivet (5)
CR3552-4-05 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CR3552-4-05 Blind Rivet

Product Series
CR
ECCN
EAR99
Schedule
7318.23.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Nickel alloy r-405 sleeve or nickel alloy 400 sleeve
Countersink Angle
Between 98.5 degrees and 101.5 degrees
End Application
a-10 thunderbolt ii t-37; aircraft stratofortress b-52; aircraft eagle f-15; aircraft phantom f-4; aircraft hercules c-130; aircraft galaxy c-5; aircraft f-111; aircraft hc-130; aircraft ec-130e mc-130h ac-130h t-38; aircraft 8aircraft
Expansion Device
Serrated stem-type w
Grip Length
Between 0.251 inches and 0.312 inches
Head Major Diameter
Between 0.221 inches and 0.229 inches
Material Specification
Ams 5657 assn standard single material response stem
Nondefinitive Specification/std Data
1 type and b style and 2 class
Shank Diameter
Between 0.139 inches and 0.143 inches
Shank Style
Self-plugging mechanically locked stem
Specification Data
81349-mil-r-7885/9 government specification
