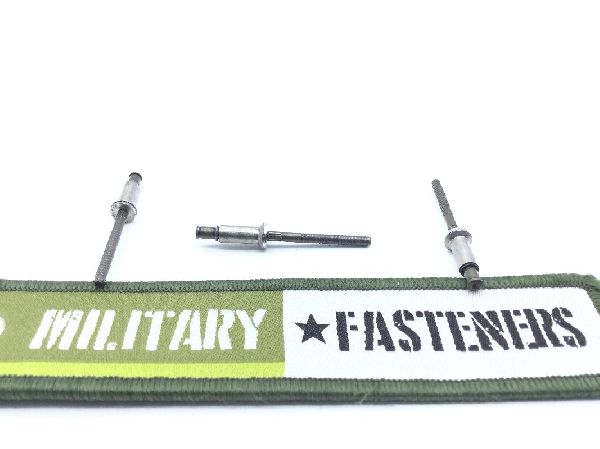

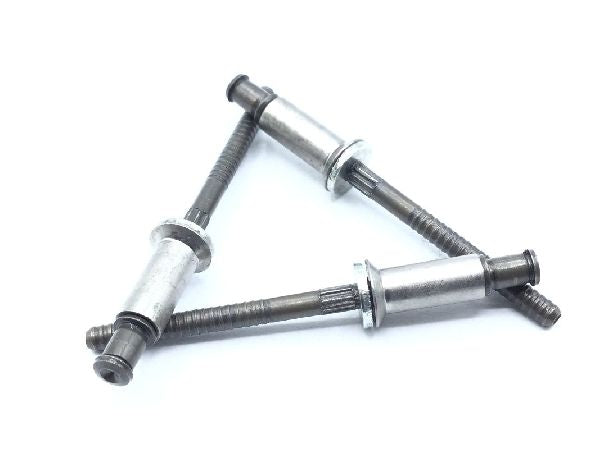

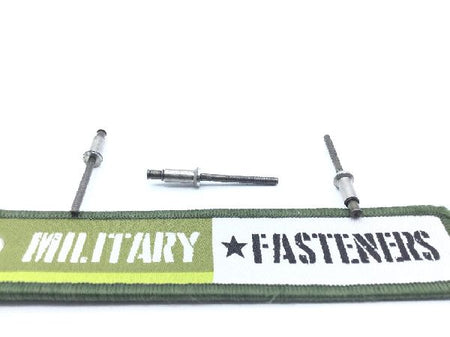

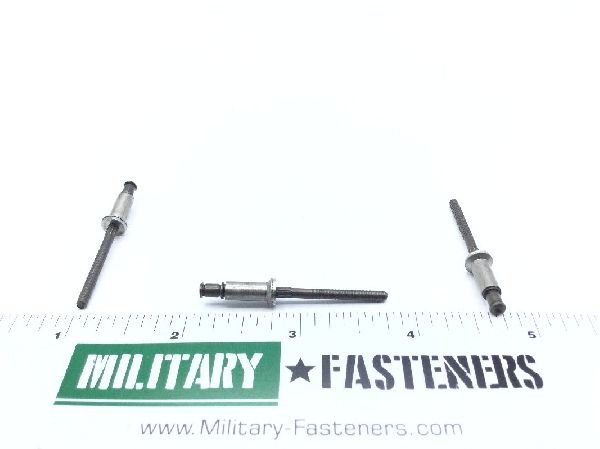

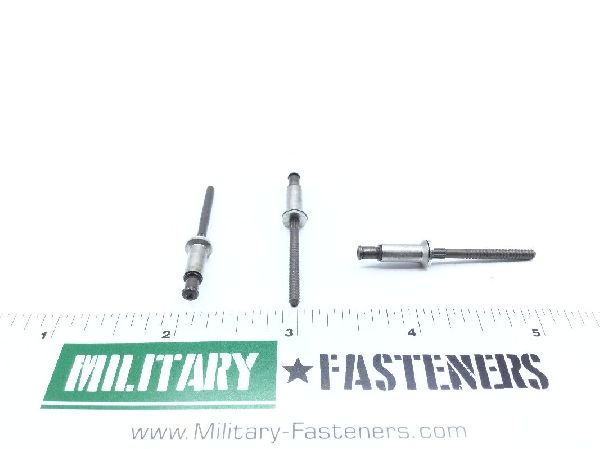

CR3552-5-05 Blind Rivet

Product Series: CR
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Nickel alloy r-405 sleeve or nickel alloy 400 sleeve

Countersink Angle: Between 98.5 degrees and 101.5 degrees
End Application: hc-130 ec-130e mc-130h ac-130h hercules c-130;aircraft t-37;aircraft f-111;aircraft a-10;aircraft thunderbolt ii stratofortress b-52;aircraft b-1b;aircraft galaxy c-5;aircraft eagle f-15;aircraft phantom f-4;aircraft aircraft
Expansion Device: Serrated stem-type w
Fastener Length: Between 0.404 inches and 0.434 inches
Grip Length: Between 0.251 inches and 0.312 inches
Head Major Diameter: Between 0.282 inches and 0.290 inches
Material Specification: Qq-n-281 federal specification all material responses sleeve
Nondefinitive Specification/std Data: 1 type and b style and 2 class
Shank Diameter: Between 0.172 inches and 0.176 inches
Shank Style: Self-plugging mechanically locked stem
Specification Data: 81349-mil-r-7885/9 government specification
