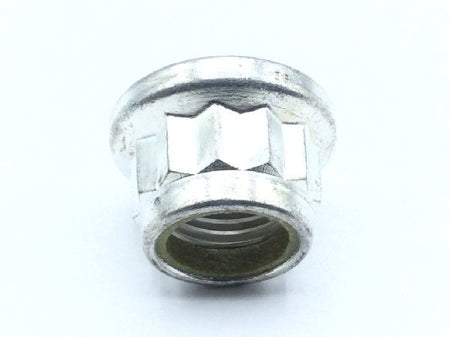

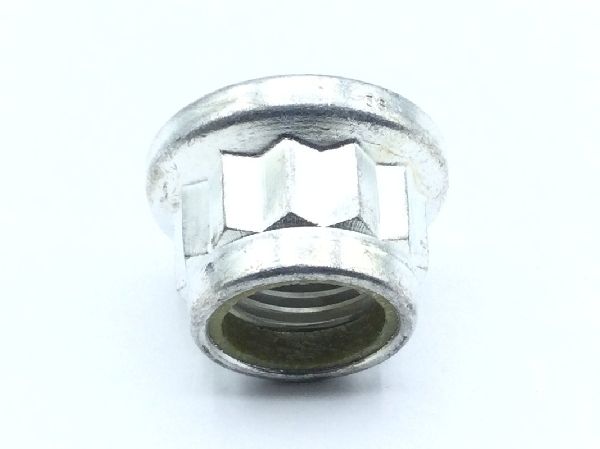

DHN35-8 Self-Locking Extended Washer Nut

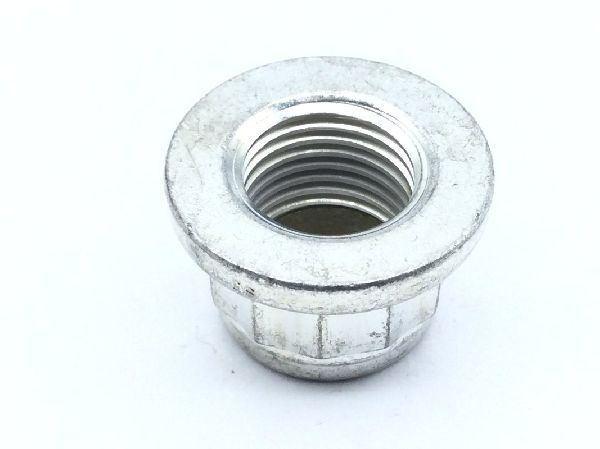

DHN35-8 Self-Locking Extended Washer Nut (2)

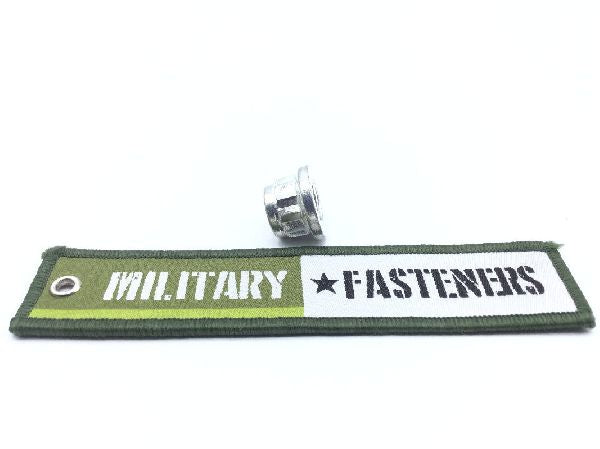

DHN35-8 Self-Locking Extended Washer Nut (3)

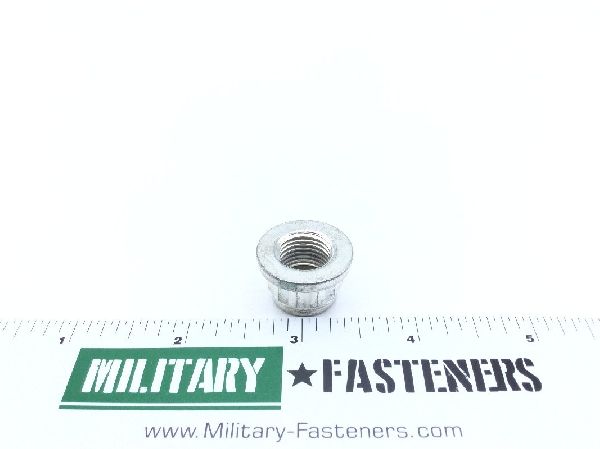

DHN35-8 Self-Locking Extended Washer Nut (4)

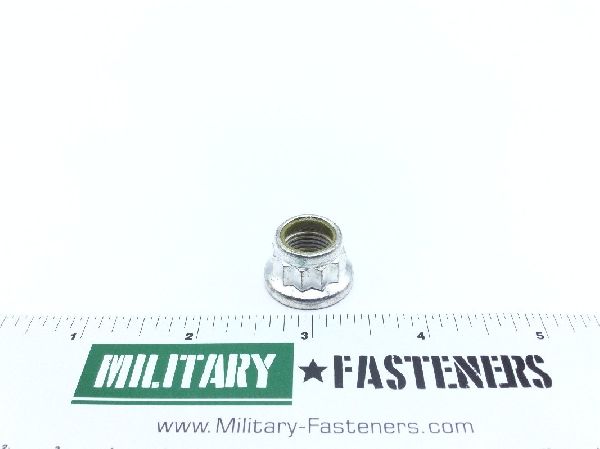

DHN35-8 Self-Locking Extended Washer Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

DHN35-8 Self-Locking Extended Washer Nut

ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response except insert type 1 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.500 inches

Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: Aisi assn standard all material responses nut
Nut Style: Double hexagon
Overall Height: 0.563 inches
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Washer Outside Diameter: Between 0.865 inches and 0.875 inches
Washer Thickness: 0.118 inches
Width Across Flats: Between 0.612 inches and 0.628 inches
