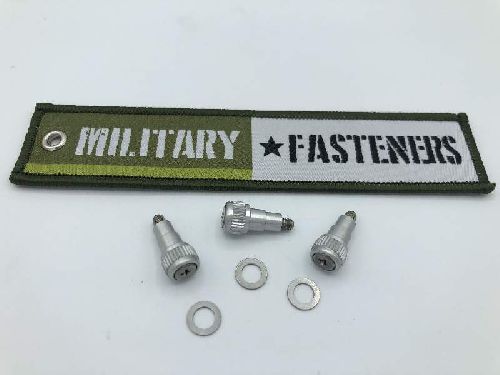

F7500P-6-B-3 Machine Screw

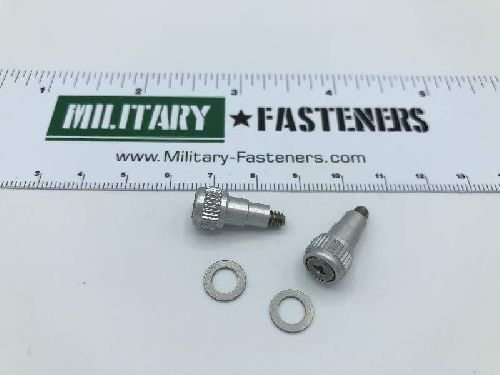

F7500P-6-B-3 Machine Screw (2)

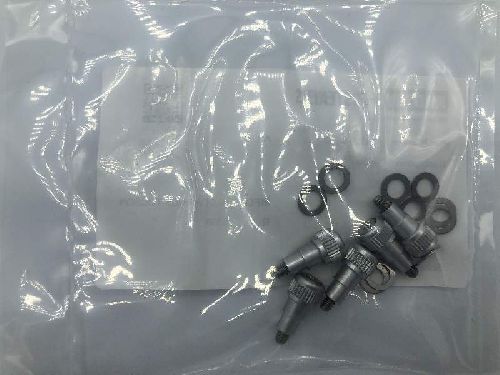

F7500P-6-B-3 Machine Screw (3)

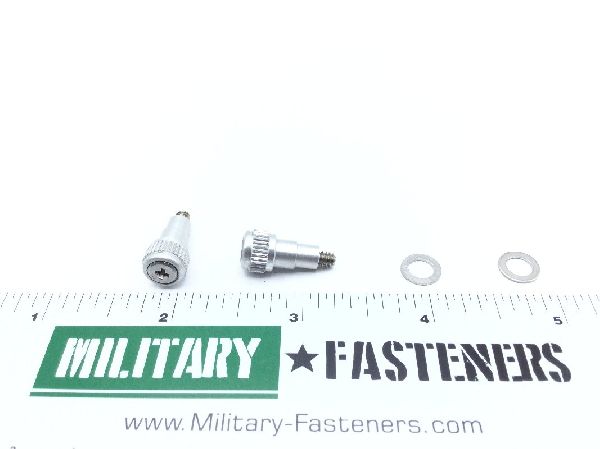

F7500P-6-B-3 Machine Screw (4)

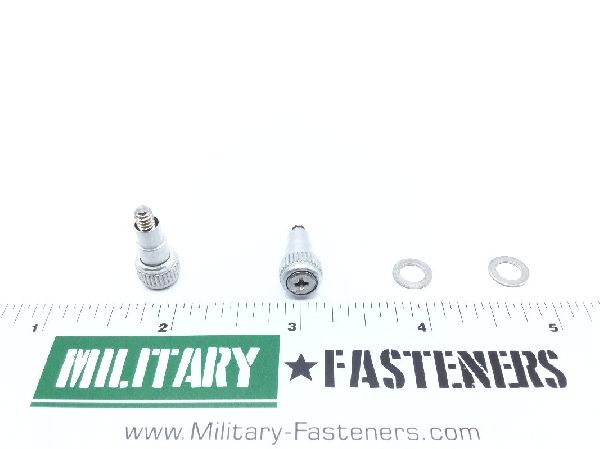

F7500P-6-B-3 Machine Screw (5)

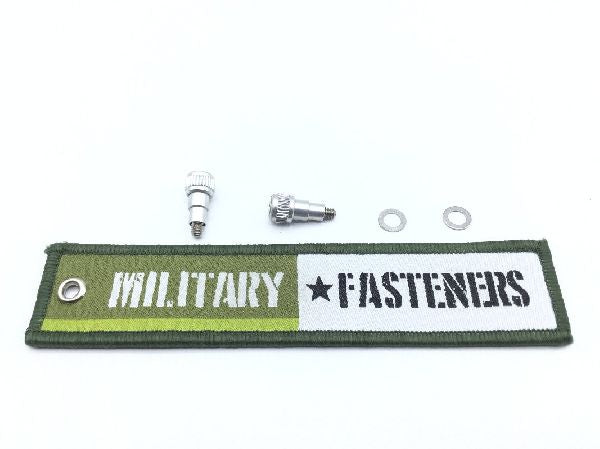

F7500P-6-B-3 Machine Screw (6)

F7500P-6-B-3 Machine Screw (7)

F7500P-6-B-3 Machine Screw (8)

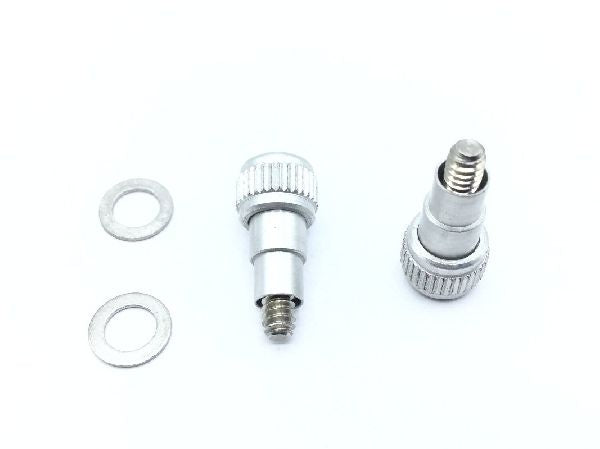

F7500P-6-B-3 Machine Screw (9)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

F7500P-6-B-3 Machine Screw

ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Knurled no. 4

Material

Aluminum alloy 6061 stand-off

Surface Treatment

Qq-p-35 federal specification single treatment response spring

Thread Class

3a

Fastener Length: Between 0.505 inches and 0.775 inches
Head Height: 0.270 inches
Internal Drive Style: Cross recess type 1
Material Accommodated Thickness: Between 0.032 inches and 0.093 inches
Material Specification: Qq-w-423 cond b federal specification single material response spring
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.356 inches
