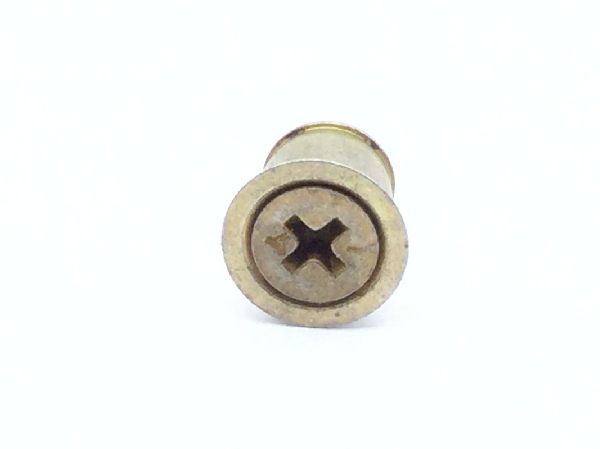

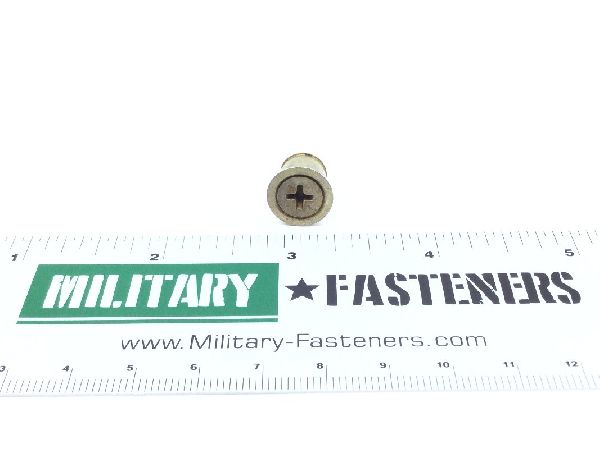

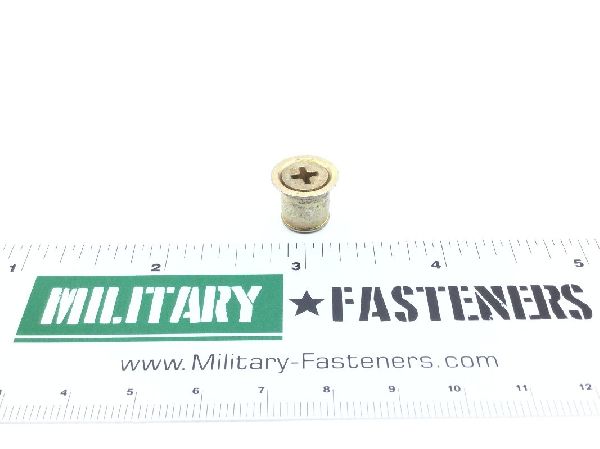

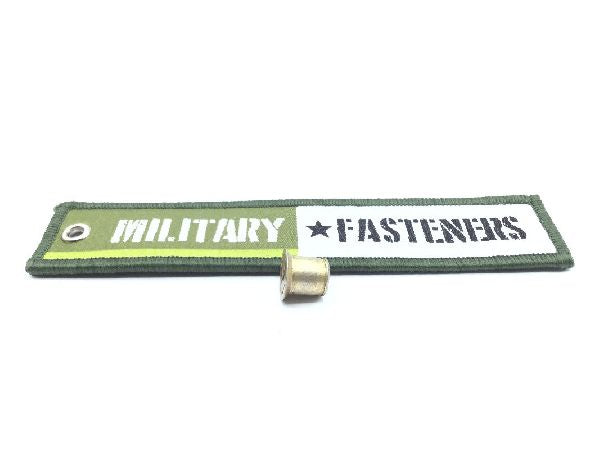

FX10-15010-1P Panel Screw Assembly

FX10-15010-1P Panel Screw Assembly (2)

FX10-15010-1P Panel Screw Assembly (3)

FX10-15010-1P Panel Screw Assembly (4)

FX10-15010-1P Panel Screw Assembly (5)

FX10-15010-1P Panel Screw Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

FX10-15010-1P Panel Screw Assembly

ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $105.00

Units per Pack 1

Price per Pack $105.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $105.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Thread Class

3a

Countersink Angle: 100 degrees
Fastener Length: 0.41 inches
Internal Drive Style: Cross recess type 1
Lead Thread Quantity: Four
Material Accommodated Thickness: Between 0.230 inches and 0.290 inches
Material Specification: Mil-s-5626 military specification single material response stand-off
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.520 inches and 0.528 inches
