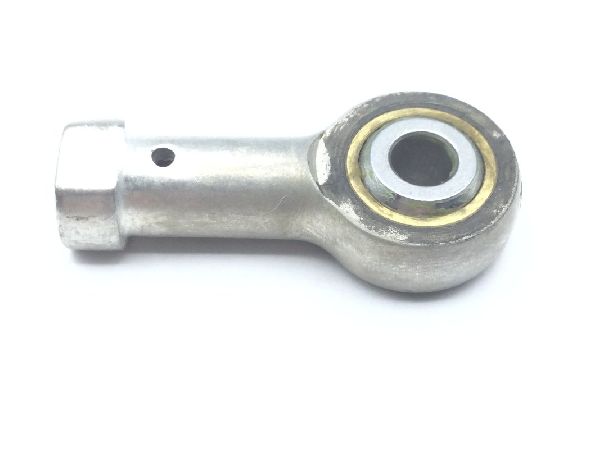

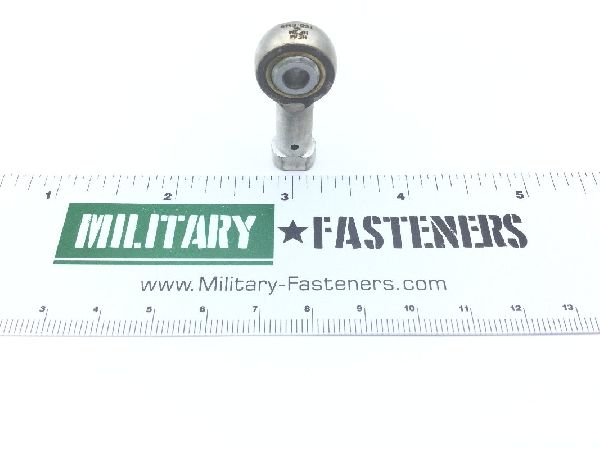

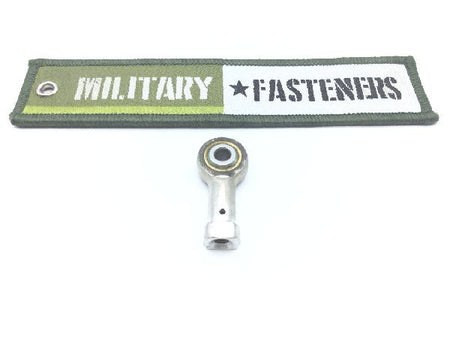

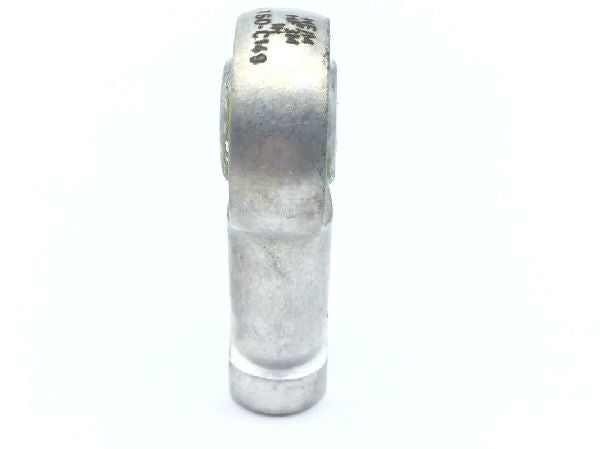

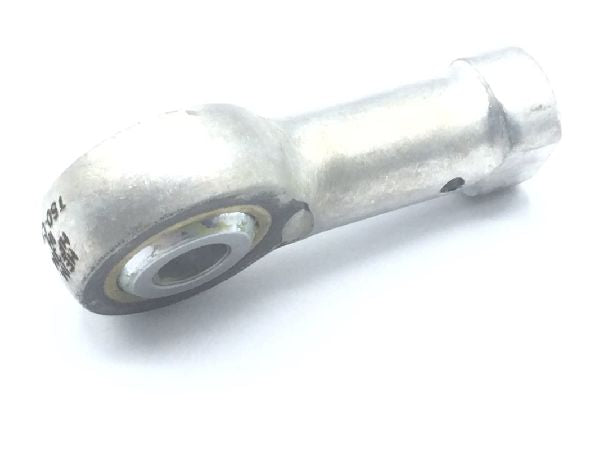

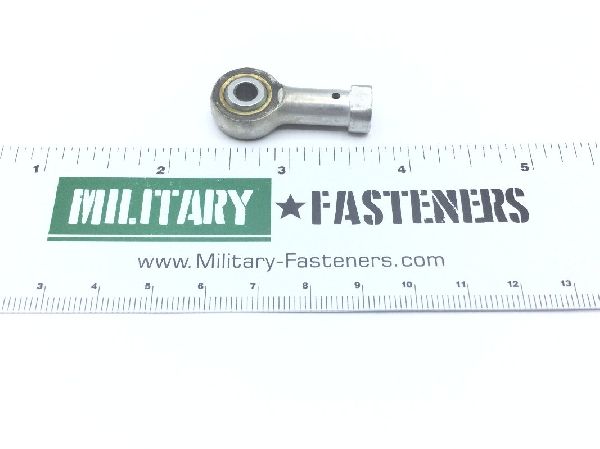

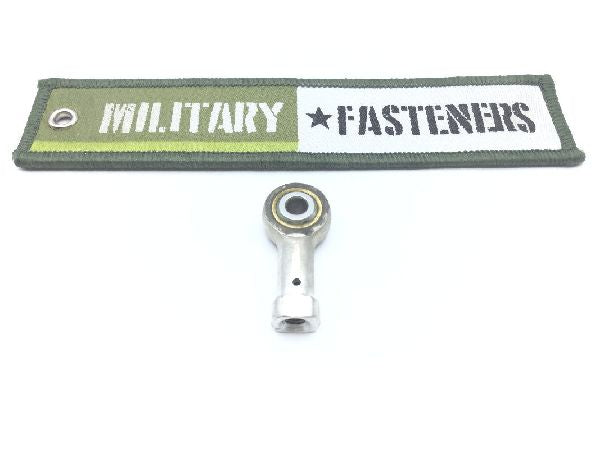

HF3M Rod End Bearing

ECCN: EAR99
Schedule: 8483.30.8090

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper alloy

Overall Length

1.3750 inches

Thread Class

Bore Center To Shank End Distance: Between 1.0615 inches and 1.0625 inches
Bore Diameter: Between 0.1895 inches and 0.1925 inches
Inner Member Width: Between 0.3120 inches and 0.3125 inches
Lubrication Feature: Groove external inner member
Outer Member Outside Diameter: Between 0.6150 inches and 0.6250 inches
Outer Member Width: Between 0.2450 inches and 0.2500 inches
Shank Style: Internally threaded w/bead and wrench flats
Shank Thread Length: 0.5625 inches
Shank Width Across Wrench Flats: 0.3125 inches
Style Designator: Ball type
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
