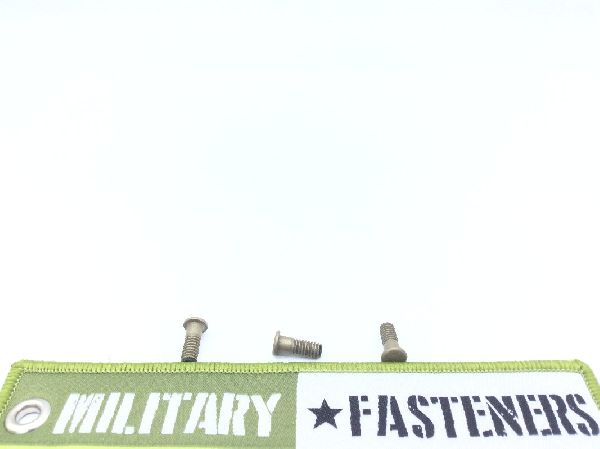

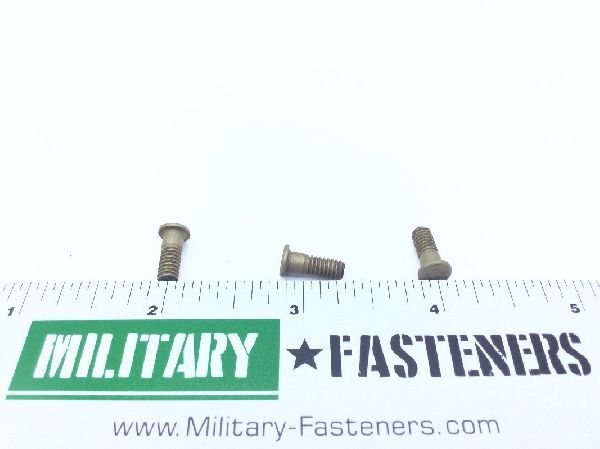

HL10VAZ5-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $5.25

Units per Pack 10

Price per Pack $52.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $52.50

Add item to quote

Head Style

Err-090

Material

Titanium alloy

Surface Treatment

Fscm 73197 mfr ref single treatment response 294

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 0.427 inches and 0.447 inches
Grip Length: 0.130 inches
Head Height: Between 0.037 inches and 0.047 inches
Head Major Diameter: Between 0.242 inches and 0.262 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.064 inches and 0.065 inches
Lubrication: Cetyl alcohol
