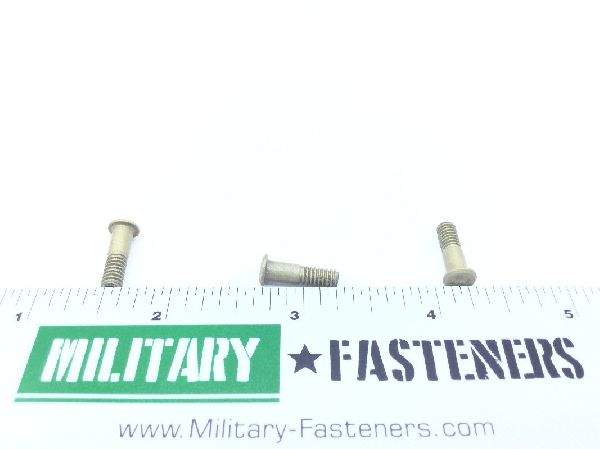

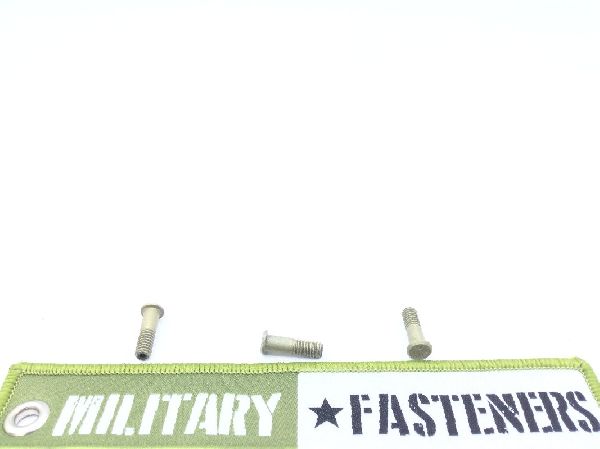

HL10VAZ5-4 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Err-090

Material

Titanium alloy uns r56400

Surface Treatment

Hi-shear specification 294 mfr ref single treatment response or hi-shear specification 305 mfr ref single treatment response

Thread Class

Thread Size

0.164 inches

End Application: Rq-4a aircraft
Fastener Length: Between 0.765 inches and 0.785 inches
Grip Length: Between 0.245 inches and 0.255 inches
Head Height: Between 0.037 inches and 0.047 inches
Head Major Diameter: Between 0.242 inches and 0.262 inches
Identification Code Color: Black
Material Specification: Ams 4967 assn standard single material response
Part Name Assigned By Controlling Agency: Protrouding shear head
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.075 inches and 0.090 inches
