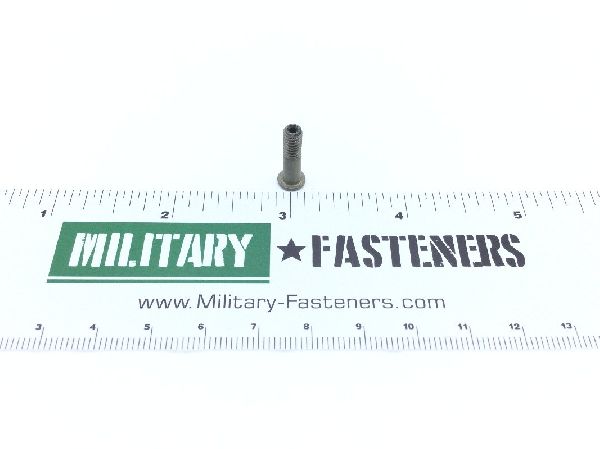

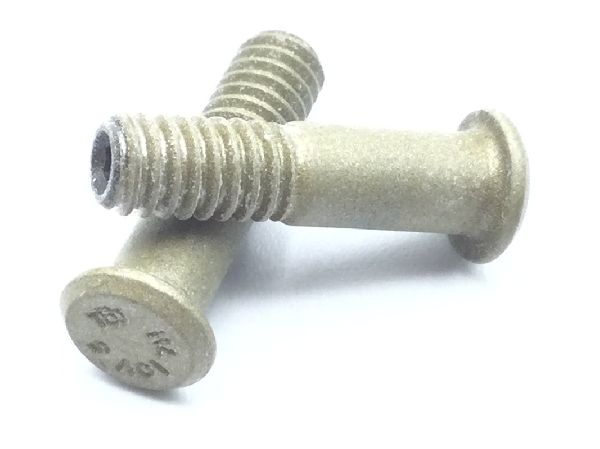

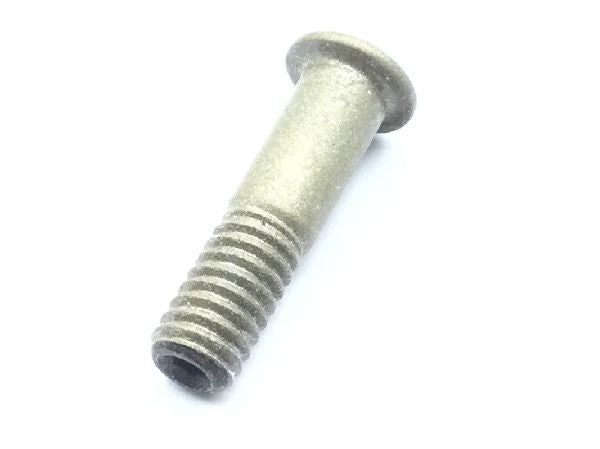

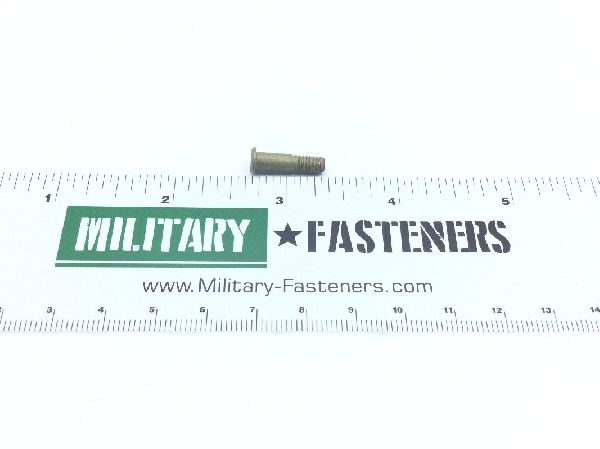

HL10VAZ5-5 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Err-090

Material

Titanium alloy uns r56400

Surface Treatment

Cagec 73197 mfr ref single treatment response hi kote 1

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 0.614 inches and 0.634 inches
Grip Length: Between 0.307 inches and 0.317 inches
Head Height: Between 0.037 inches and 0.047 inches
Head Major Diameter: Between 0.242 inches and 0.262 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Special Features: Identify with black dye or paint on thread end. install using a torque controlled hex key
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0635 inches and 0.0645 inches
Lubrication: hi-shear corp specification 305 cetyl alcohol
