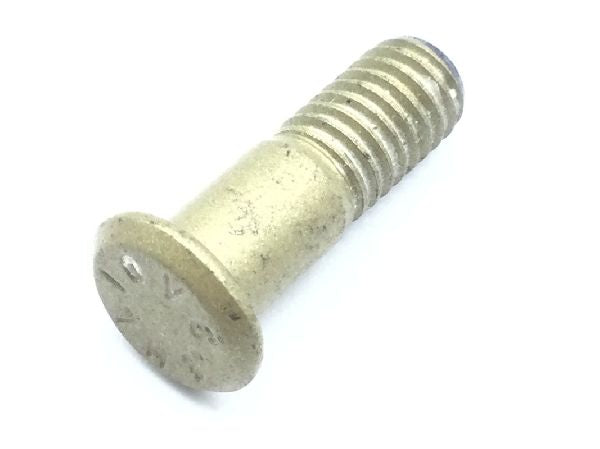

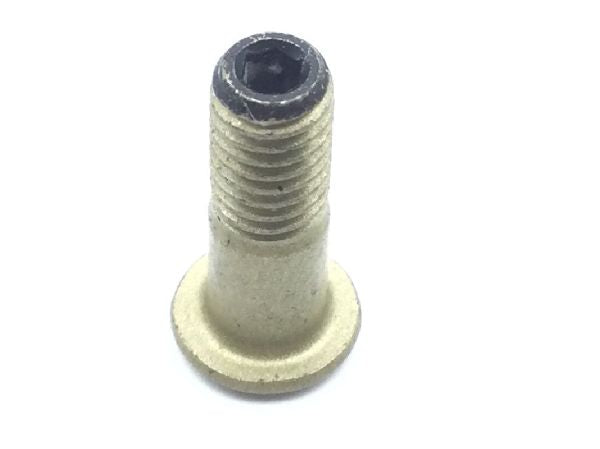

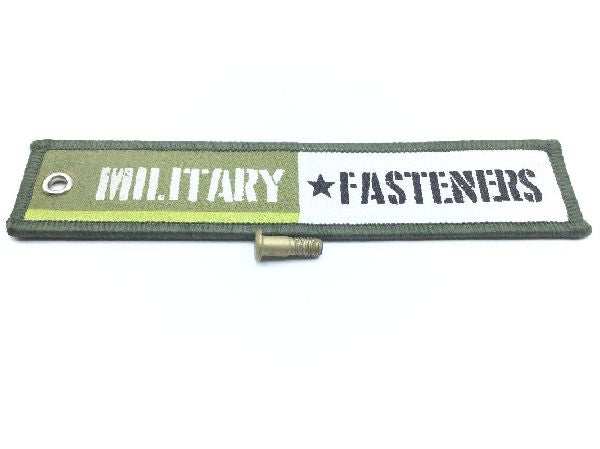

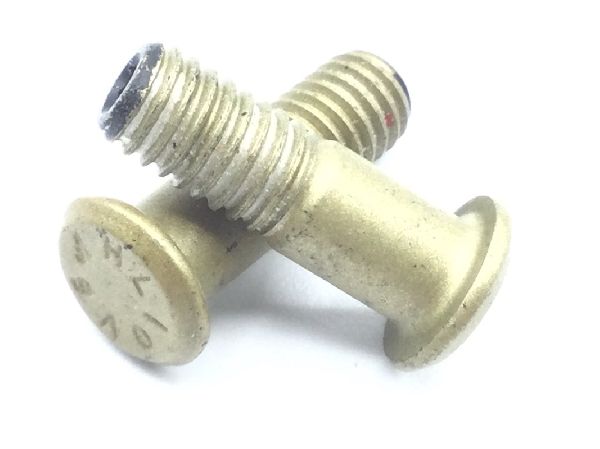

HL10VAZ6-4 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Err-090

Material

Titanium alloy uns r56400

Surface Treatment

Hi-shear specification 294 mfr ref single treatment response or hi-shear specification 305 mfr ref single treatment response

Thread Class

Thread Size

0.190 inches

End Application: Rq-4a aircraft
Fastener Length: Between 0.765 inches and 0.785 inches
Grip Length: Between 0.245 inches and 0.255 inches
Head Height: Between 0.045 inches and 0.055 inches
Head Major Diameter: Between 0.295 inches and 0.315 inches
Identification Code Color: Black
Material Specification: Ams 4967 assn standard single material response
Part Name Assigned By Controlling Agency: Protrouding shear head
Shank Diameter: Between 0.1885 inches and 0.1895 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.104 inches and 0.119 inches
