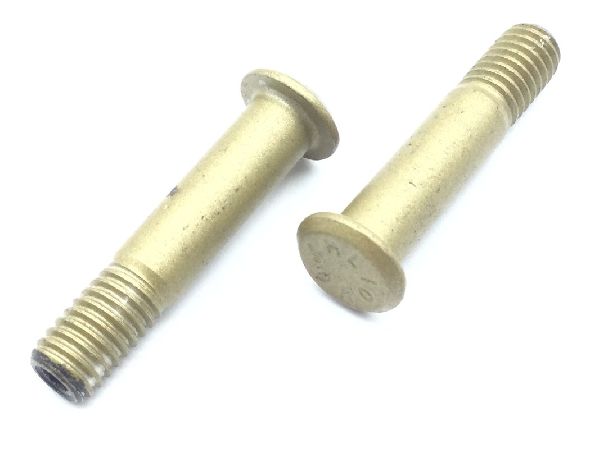

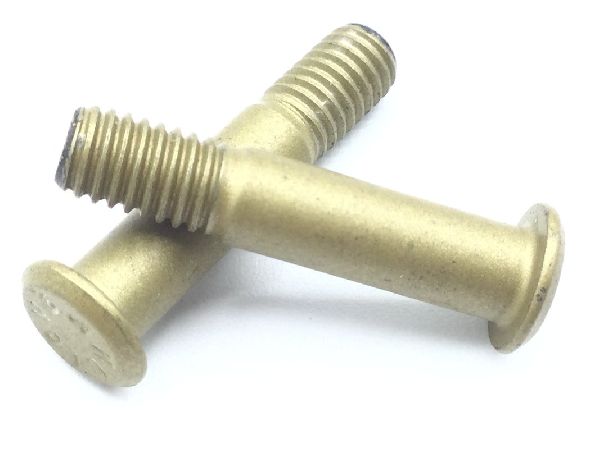

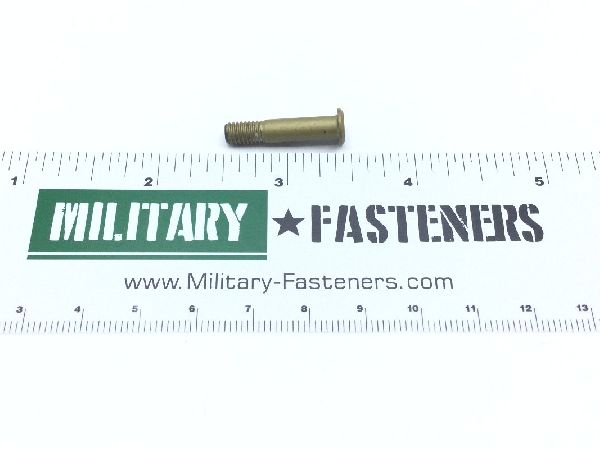

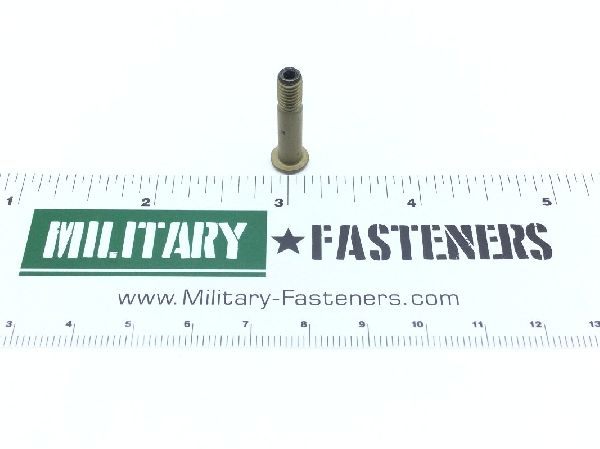

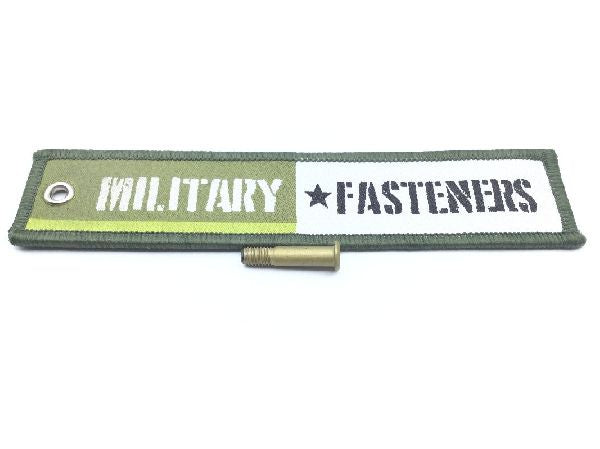

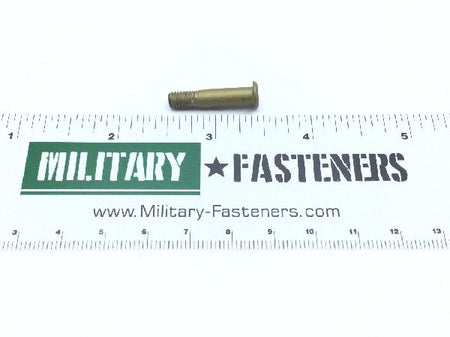

HL10VAZ6-9 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $4.10

Units per Pack 10

Price per Pack $41.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.00

Add item to quote

Head Style

Err-090

Material

Titanium alloy

Surface Treatment

Fscm 73197 mfr ref single treatment response 294

Thread Class

Thread Size

0.190 inches

End Application: b-2 bomber (atb) intruder a-6e; aircraft freedom fighter f-5; aircraft w/s:aircraft
Fastener Length: Between 0.877 inches and 0.897 inches
Grip Length: 0.567 inches
Head Height: Between 0.045 inches and 0.055 inches
Head Major Diameter: Between 0.295 inches and 0.315 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Shank Diameter: Between 0.189 inches and 0.190 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.079 inches and 0.081 inches
Lubrication: Cetyl alcohol
