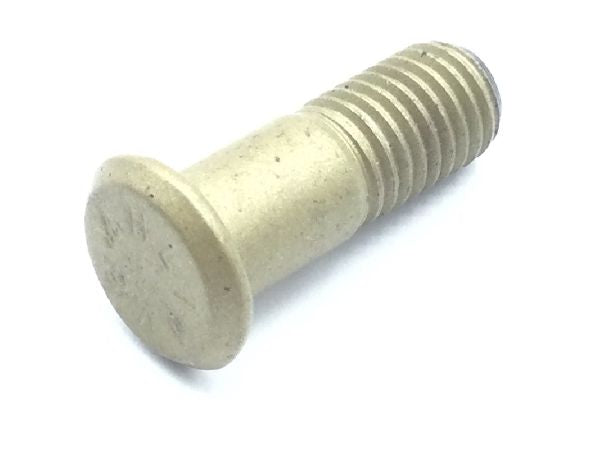

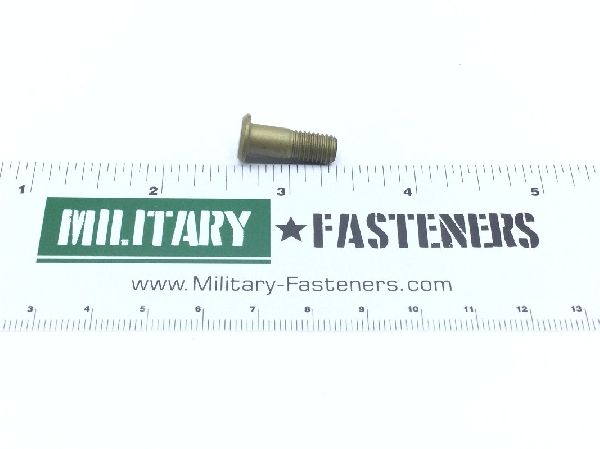

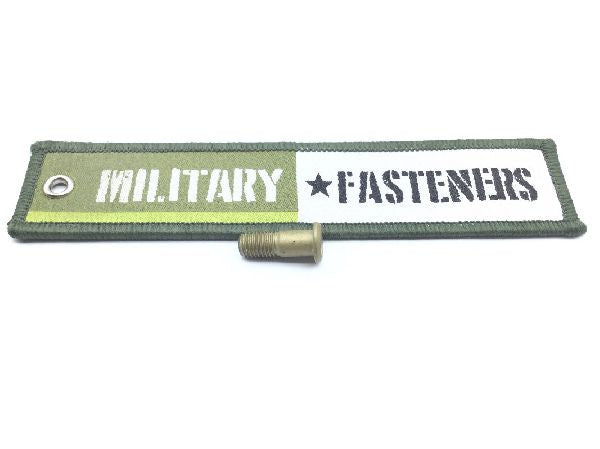

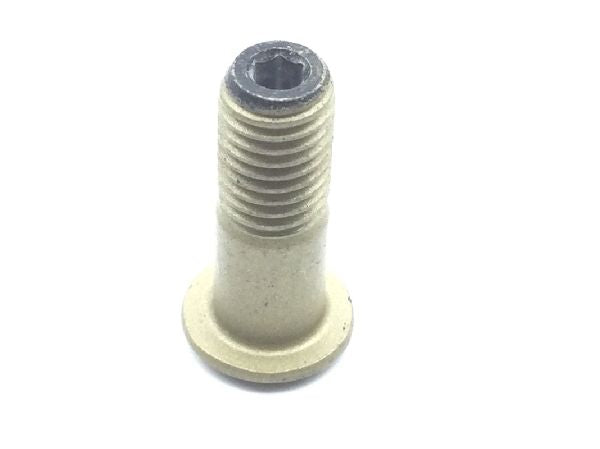

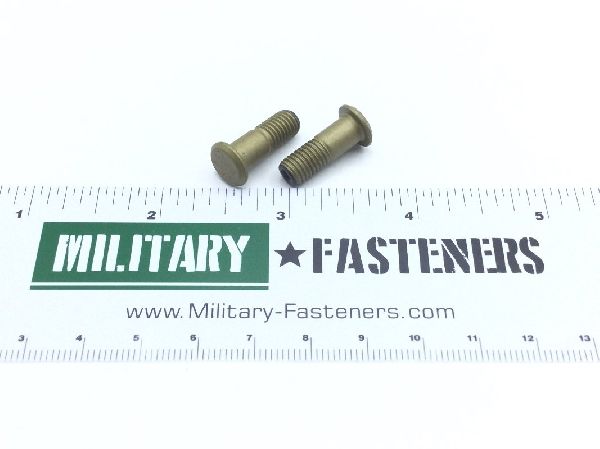

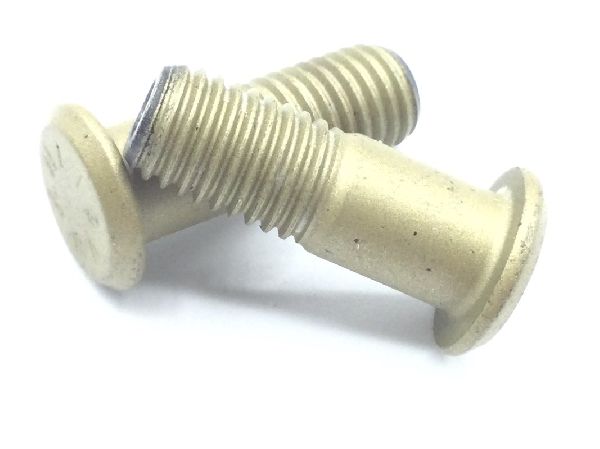

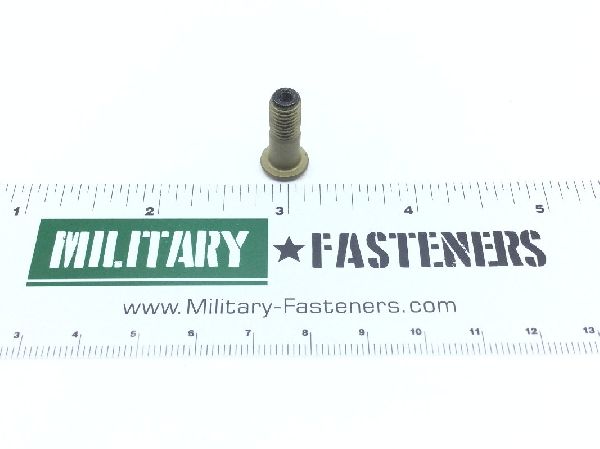

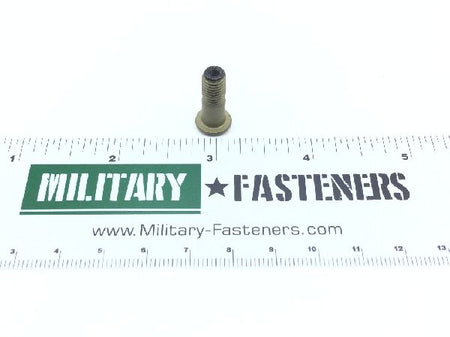

HL10VAZ8-5 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $6.37

Units per Pack 10

Price per Pack $63.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $63.70

Add item to quote

Head Style

Err-090

Material

Titanium alloy uns r56400

Surface Treatment

Cagec 73197 mfr ref single treatment response hi kote 1

Thread Class

Thread Size

0.250 inches

Fastener Length: Between 0.697 inches and 0.717 inches
Grip Length: Between 0.307 inches and 0.317 inches
Head Height: Between 0.059 inches and 0.069 inches
Head Major Diameter: Between 0.387 inches and 0.412 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.2485 inches and 0.2495 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Special Features: Identify with black dye or paint on thread end
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0947 inches and 0.0967 inches
Lubrication: hi-shear corp specification 305 cetyl alcohol
