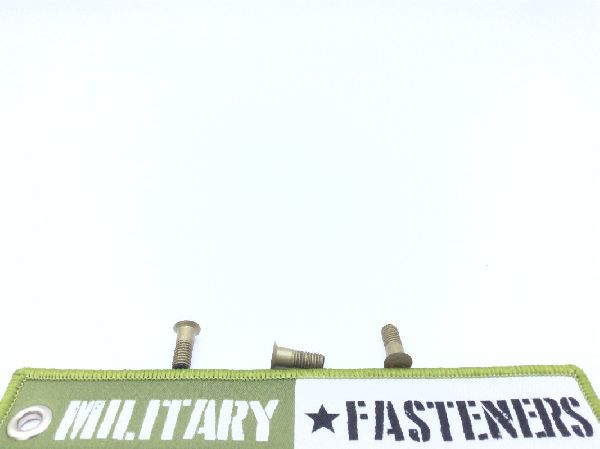

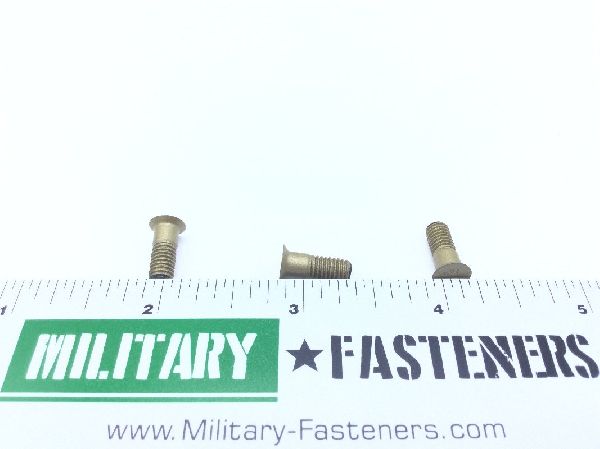

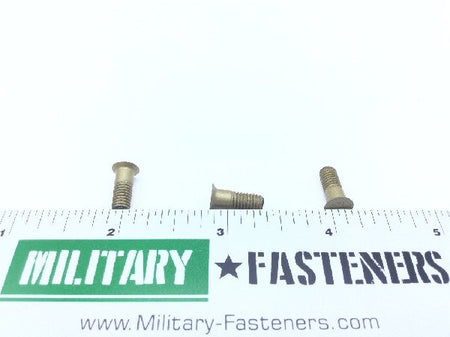

HL11VAZ6-3 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $3.68

Units per Pack 10

Price per Pack $36.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $36.80

Add item to quote

Head Style

Flush countersunk

Material

Titanium alloy

Surface Treatment

Fscm 73197 mfr ref single treatment response 294

Thread Class

Thread Size

0.190 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.502 inches and 0.522 inches
Grip Length: 0.192 inches
Head Major Diameter: Between 0.2966 inches and 0.3016 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Shank Diameter: Between 0.1885 inches and 0.1895 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0791 inches and 0.0806 inches
Lubrication: Cetyl alcohol
