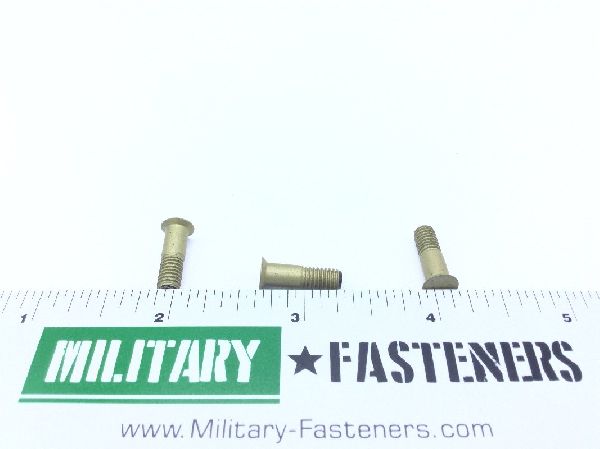

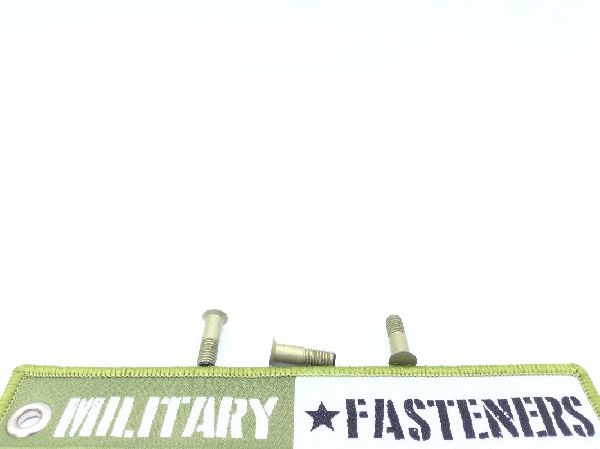

HL11VAZ6-5 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush countersunk

Material

Titanium alloy uns r56400

Surface Treatment

Hi-shear specification 294 mfr ref single treatment response

Thread Class

M3a

Thread Size

0.188 inches

Countersink Angle: 100.0 degrees
End Application: C-5 reliability enhancement re-engining program
Fastener Length: Between 0.947 inches and 0.967 inches
Grip Length: 0.562 inches
Head Major Diameter: Between 0.2966 inches and 0.3016 inches
Material Specification: Ams4928 assn standard single material response or ams4967 assn standard single material response
Min. Tensile Strength (psi): 2000 pounds per square inch
Part Name Assigned By Controlling Agency: reduced flush pin
Shank Diameter: Between 0.1890 inches and 0.1895 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 5380 double pounds per square inch
Special Features: Color black on threads; 32 microinch finish
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): B32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0791 inches and 0.0806 inches
Lubrication: hi-shear corp specification 305 cetyl alcohol
